120*120*8 Perforated Metal Sheet

Product introduction

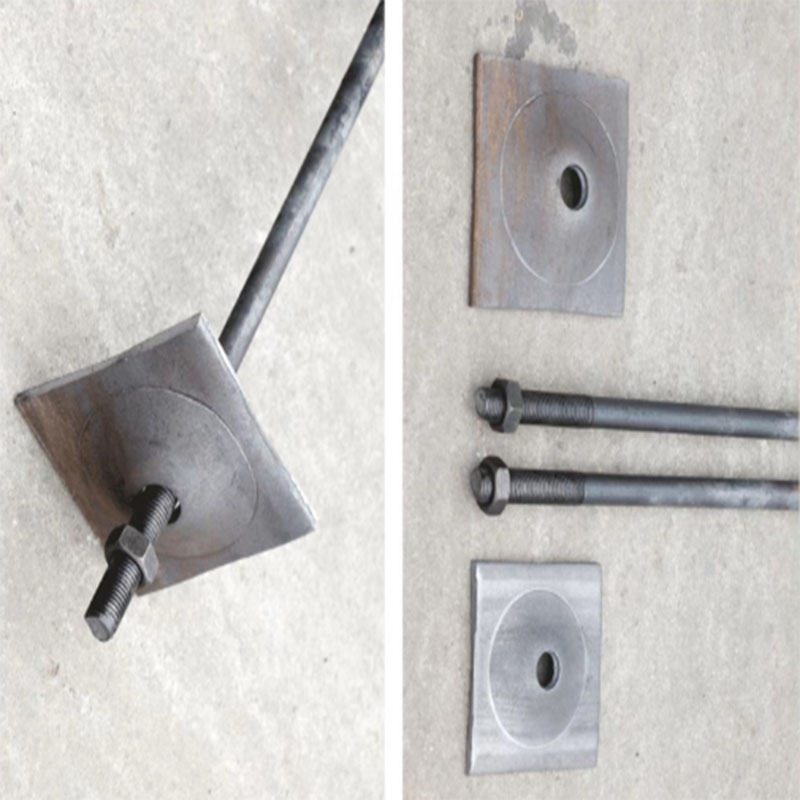

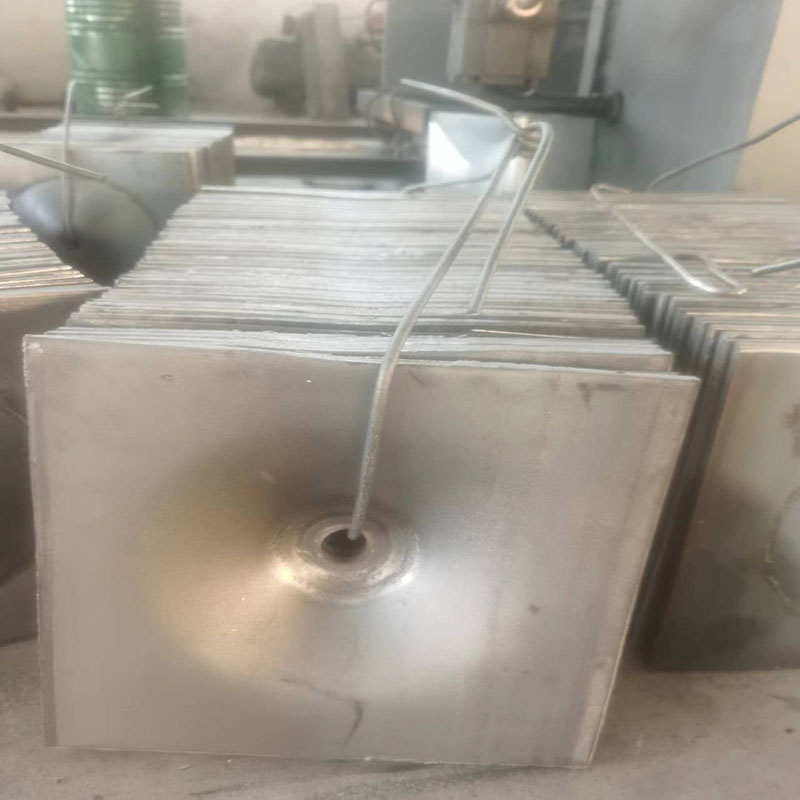

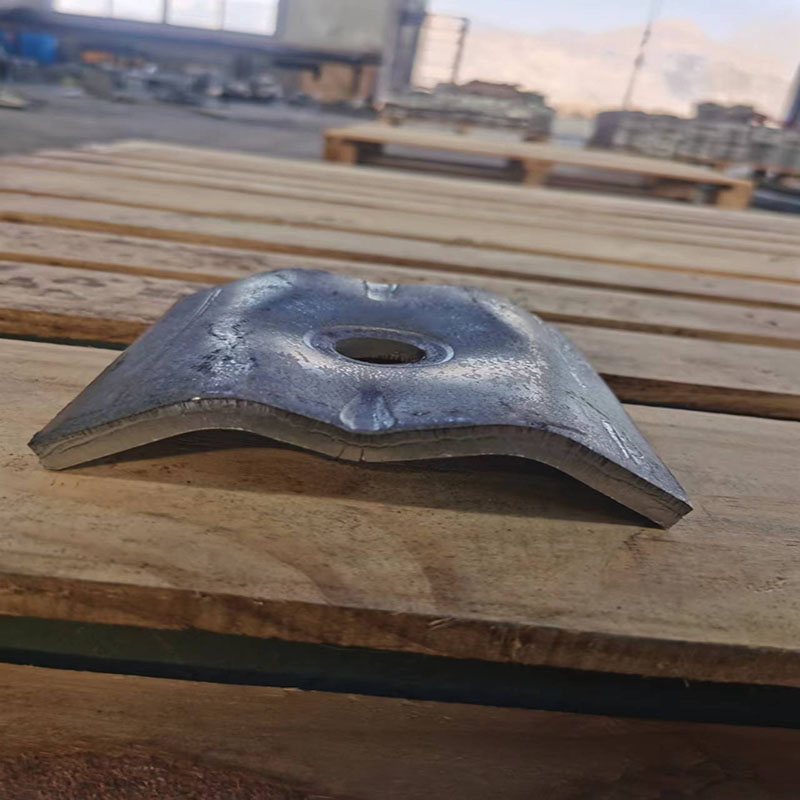

Mining pallet a kind of pallet used for mine roadway, tunnel, especially coal mine roadway anchor support, the center of the pallet has a hole for the anchor to pass through, the central part of the hollow spherical projection, there can be a platform at the top of the spherical projection, the pallet can be made of steel plate or cast iron, the pallet made of cast iron can have reinforcing rib around the spherical projection. As an important part of the anchor support system, the performance of the anchor tray directly affects the support effect of the anchor. The role of the tray is to transfer the thrust force generated by the nut locking torque to the top gang to produce the initial anchor force, and at the same time, the pressure of the roadway top gang is transferred to the anchor rod to produce the working resistance, which jointly reinforces the surrounding rock and prevents the displacement of the roadway top gang. Therefore, when selecting the tray, firstly, it is necessary to satisfy the matching of the anchor tray and the anchor rod body in terms of strength, so as to avoid the phenomenon of anchor perforation caused by the insufficient strength of the anchor tray. The second is to meet the matching between the anchor tray and the anchor rod body in the support structure, to avoid the uneven force on the anchor rod body and nut due to the mismatch between the anchor rod body and the tray in the support structure, which affects the support effect of the roadway.

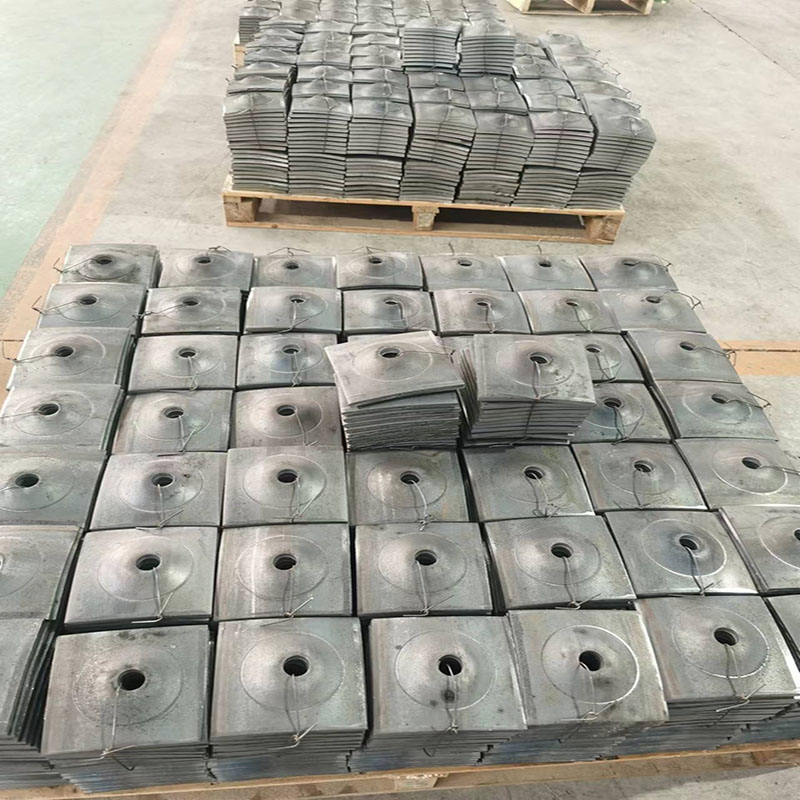

Anchor pallet main specifications

120*120*6

120*120*8

120*120*10

140*140*8

140*140*10

150*150*8

150*150*10

Anchor trays play a vital role in the anchor support system, and they directly affect the effectiveness of anchor support. The main role includes two aspects:

1.Transmission of thrust: the anchor tray can transmit the thrust generated by the nut locking to the top gang, thus generating the initial anchor force. This helps to reinforce the surrounding rock and prevent displacement of the top gang.

2. Transmission of resistance: At the same time, the tray also transmits the pressure of the roadway roof to the anchor rods, generating working resistance. Through the action of the anchor pallet, it can work together to reinforce the surrounding rock and prevent the top gang from being displaced.

Therefore, two aspects need to be considered when selecting anchor pallets:

1 .Strength matching: the selected tray needs to match with the anchor body in terms of strength, in order to avoid the phenomenon of anchor perforation caused by insufficient strength of the tray.

2. Support structure matching: the tray and the anchor body also need to match in the support structure, in order to avoid the support structure does not match and lead to uneven force of the anchor body and nut, affecting the support effect of the roadway.

Through reasonable selection of anchor tray, the effect of anchor support system can be improved to ensure the safety and stability of the roadway.

Detailed description of anchor pallet for coal mine

1.Butterfly anchor pallet material:carbon steel Q235A3.

2.Anchor pallet production method:Shearing, punching, punching to make anchor pallet.
