Anchor Supporting Square Perforated Plate 150*150*10

Advantage of anchor pallet:

improved internal stress state of anchor pallet,

With strong bearing capacity,

Advantages of saving material,

Improve the internal stress state of the anchor pallet,

Have strong bearing capacity,

The advantage of saving material.


  Contact Now E-Mail Telephone WhatsApp
Product Details

Product introduction

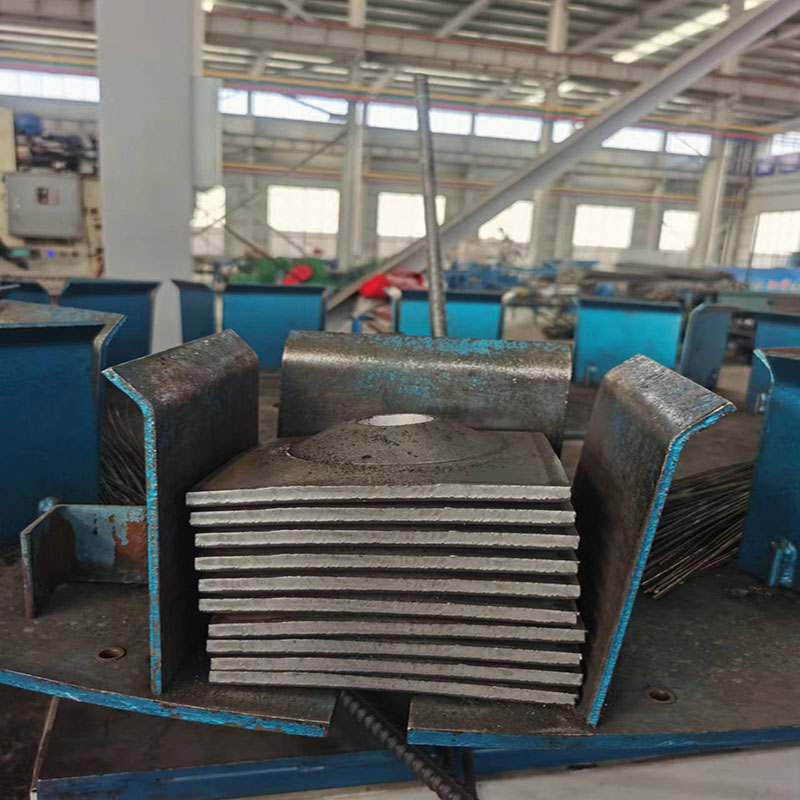

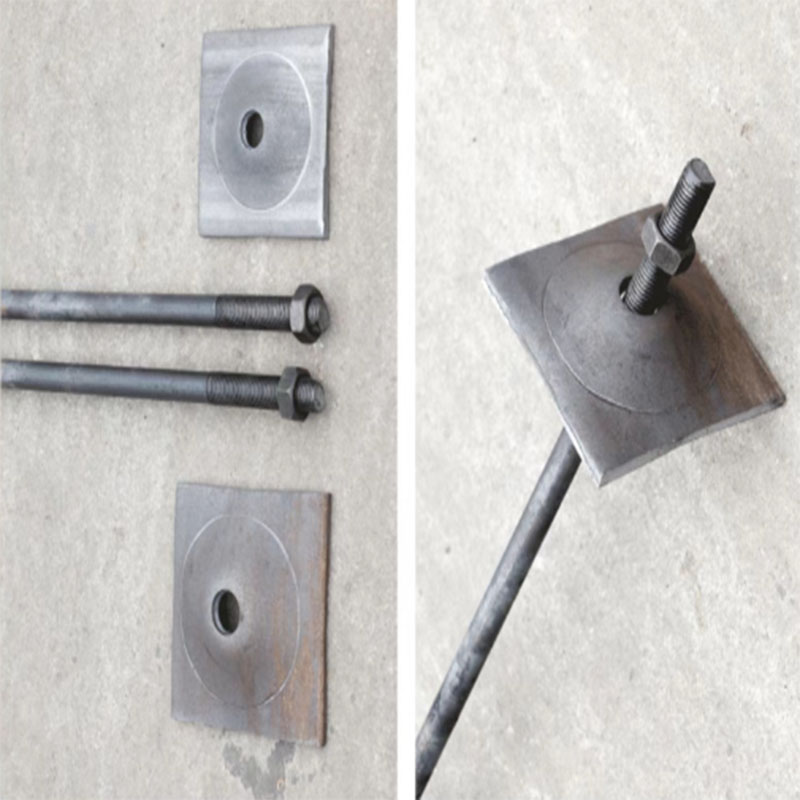

Mining pallet a kind of pallet used for mine roadway, tunnel, especially coal mine roadway anchor support, the center of the pallet has a hole for the anchor to pass through, the central part of the hollow spherical projection, there can be a platform at the top of the spherical projection, the pallet can be made of steel plate or cast iron, the pallet made of cast iron can have reinforcing rib around the spherical projection.


Anchor Supporting Square Perforated Plate 150*150*10


Anchor pallet main specifications

120*120*6

120*120*8

120*120*10

140*140*8

140*140*10

150*150*8

150*150*10


Anchor Supporting Square Perforated Plate 150*150*10


Product classification:

Mining pallet is divided into anchor pallet and anchor cable pallet according to its usage.

1. Anchor cable tray is made of steel stranded wire for the tensile reinforcement, and the anchor pallet is made of steel bar or steel pipe. Usually, the anchor cable is subjected to large force, but also add stress, the form of force is divided into anchored section and free section, can be used as a sexual anchoring project.

2. Anchor tray is one of the parts of the anchor, its material is used, welding ring, rolling head to make the rod body, cutting around the ring to make the retaining ring, shearing, punching, punching to make the tray, the rod body, retaining ring. There are many types of anchor pallets, the main ones commonly used in mines are butterfly pallets and flat pallets.


Anchor Supporting Square Perforated Plate 150*150*10


Anchor pallet features

Material: Anchor pallet material:Carbon steel Q235A3; Mining anchor pallet material:Q235 and Q345 etc;

Production method: shearing, punching, punching to make pallets Executive standard: coal mine pallets, iron ore pallets, national standard pallets, non-standard pallets; Thickness: 5.5 to 6MM, 7.5 to 8MM, 9.5 to 10MM, 11.5 to 12;


Anchor Supporting Square Perforated Plate 150*150*10
