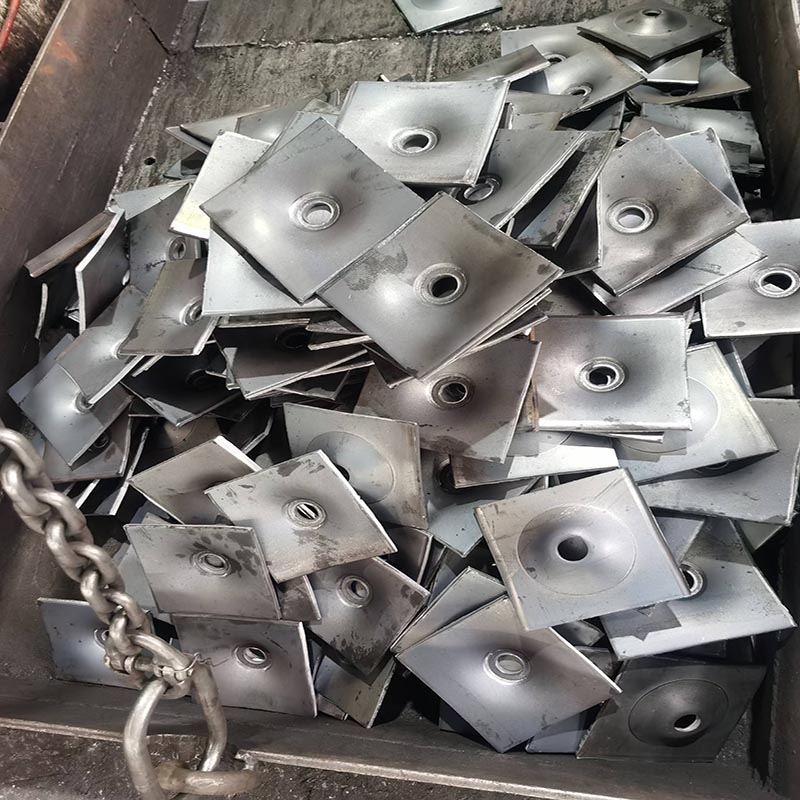

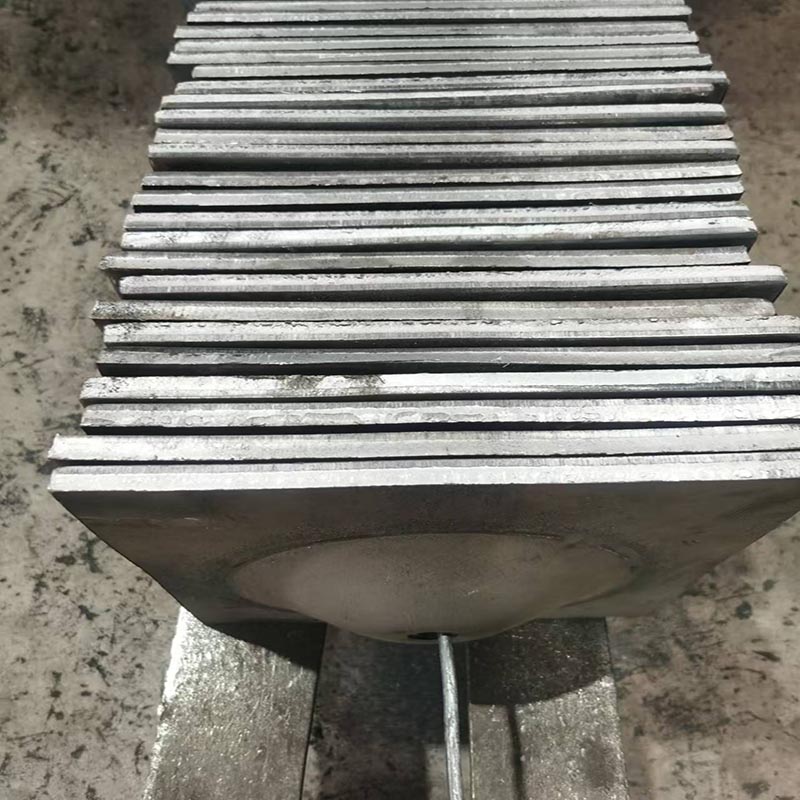

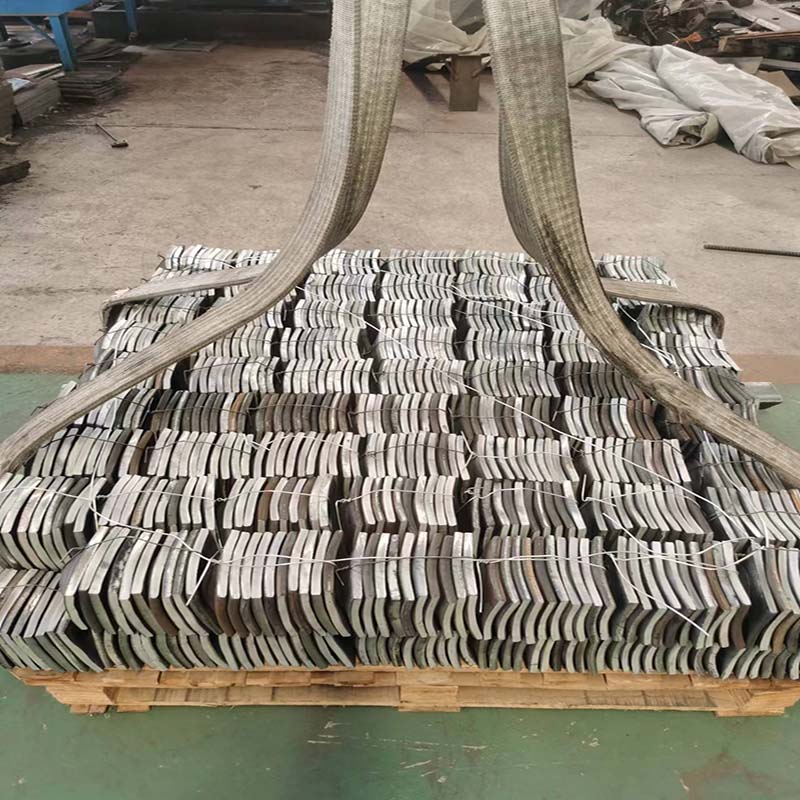

Bolted Steel Dome Plate

Description:

The Bolted Steel Dome Plate is a high performance Mining Anchor Plate designed for use in mines, tunnels and other underground work. Manufactured from high-strength steel with excellent corrosion and compression resistance, the Bolted Steel Dome Plate enhances rock stability and ensures construction safety.The unique dome design of the Bolted Steel Dome Plate allows for better stress dispersion and reduced concentrated loads, which extends the service life and improves overall structural reliability. In addition, its ease of installation greatly improves construction efficiency. Whether used for mine support or tunnel reinforcement, the Bolted Steel Dome Plate is ideal for providing long-lasting, reliable support. By using this high-quality anchoring plate, engineering teams can significantly improve the safety and stability of their projects, ensuring long-term reliability.

Specifications and parameters：

Anchor Tray Description:

As an important part of the anchor support system, the performance of the anchor tray directly affects the support effect of the anchor.

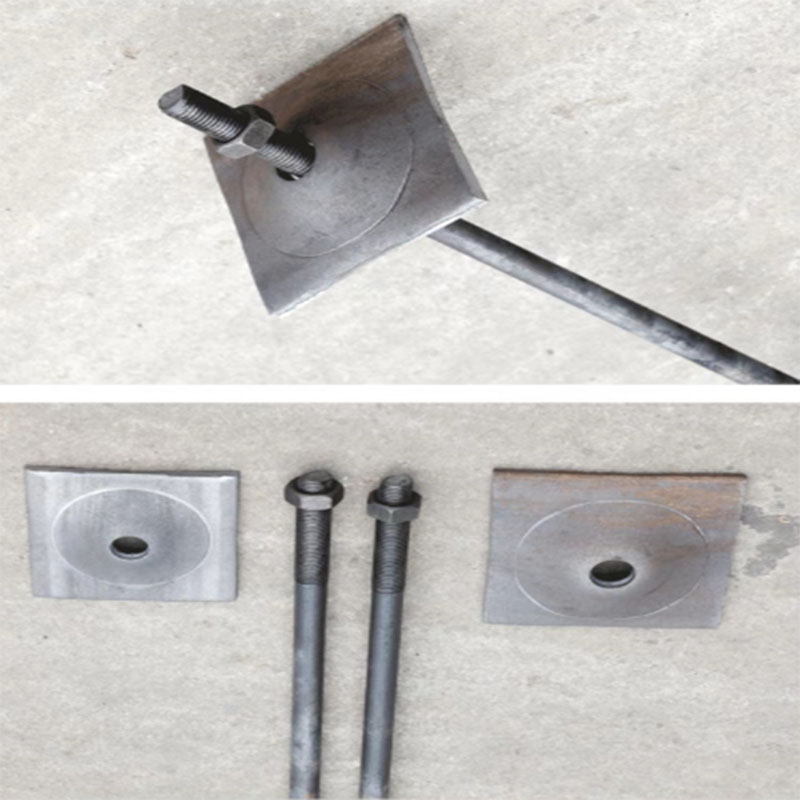

Anchor pallet a kind of pallet used for mine roadway, tunnel, especially coal mine roadway anchor support, the center of the pallet has holes for anchor rods to pass through, the central part of the hollow spherical bump, there can be a platform at the top of the spherical bump, the pallet can be made of steel plate or cast iron, the pallet made of cast iron can have reinforcing bars around the spherical bump.

Therefore, when selecting the pallet, firstly, it is necessary to meet the matching of the anchor pallet and the anchor rod body in terms of strength, to avoid the phenomenon of anchor perforation caused by the insufficient strength of the anchor pallet. The second is to meet the matching between the anchor tray and the anchor rod body in the support structure, to avoid the uneven force on the anchor rod body and nut due to the mismatch between the anchor rod body and the tray in the support structure, which affects the support effect of the roadway.

Anchor Tray Performance and Advantages:

Adopting high strength plate; adopting special shape design with good force effect; lightweight and easy to install; improving surface control effect.

Anchor Tray Features:

Material: Anchor pallet material:Carbon steel Q235A3; Mining anchor pallet material:Q235 and Q345 etc;

Production method: shearing, punching, punching to make pallets Executive standard: coal mine pallets, iron ore pallets, national standard pallets, non-standard pallets; Thickness: 5.5 to 6MM, 7.5 to 8MM, 9.5 to 10MM, 11.5 to 12;
