Mining Anchor Plate For Coal Mining Full Type

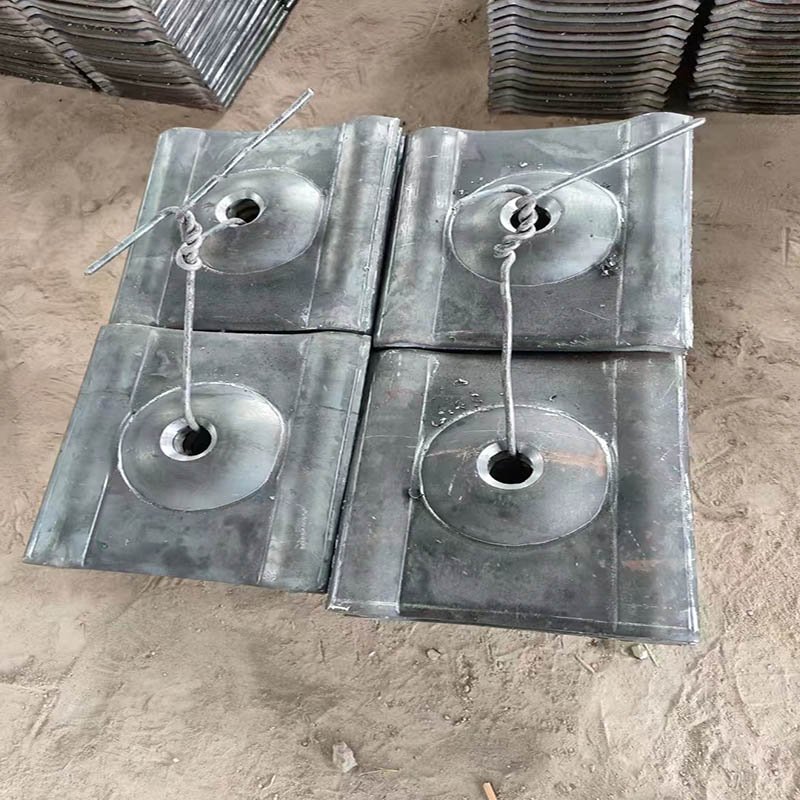

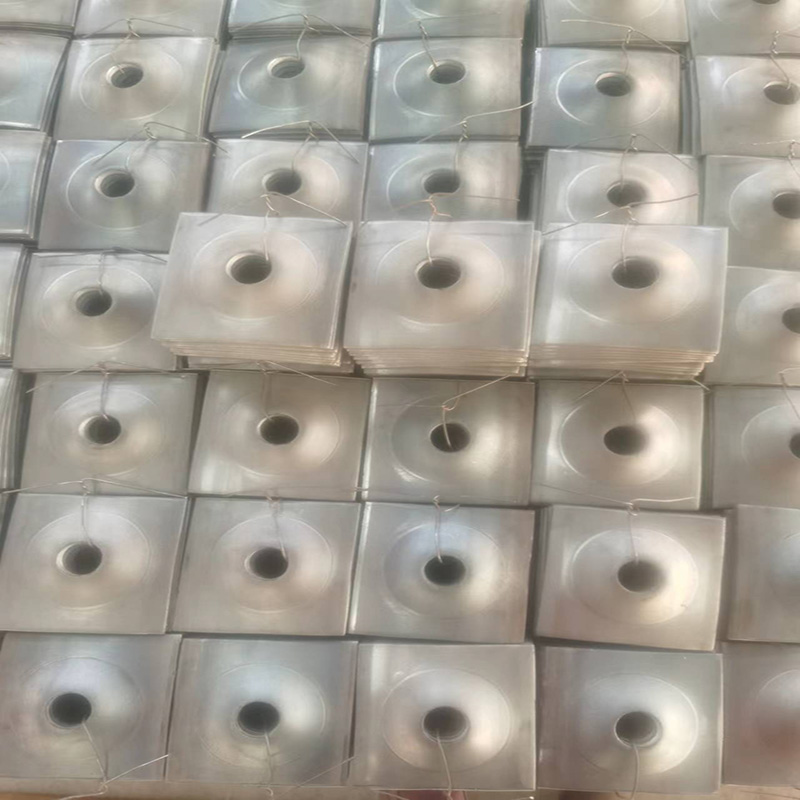

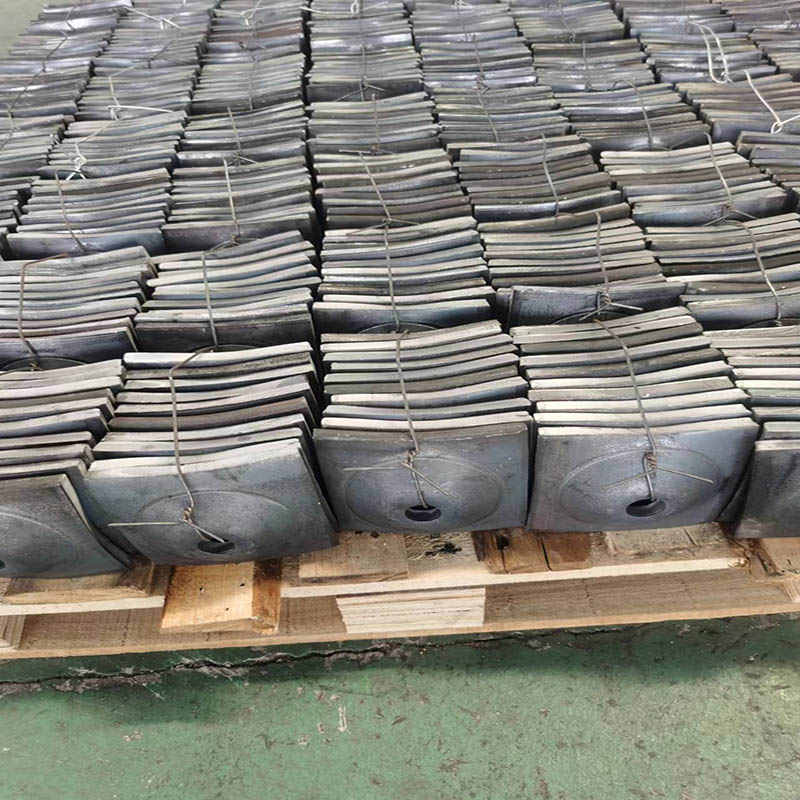

Mining Anchor Plate

Mining anchor plates are generally used for support and stabilization during excavation and mining. These plates are usually installed on the walls or tops of mine shafts or caves to ensure a safe mining environment and prevent cave-ins from occurring. These plates are usually made of steel or composite materials with high compressive and tensile shattering strength to cope with the pressure and vibration of the ore mining process.

Specifications and parameters：

Coal Mine Anchor Tray Description

A coal mine anchor pallet is a device used to secure the coal seam between the top and bottom. It is a high-strength steel tube with longitudinal slits, which immediately exerts radial pressure on the hole wall when installed and stops the friction of sliding down the surrounding rock. In addition, the anchor tray has the bearing force of a pallet, which puts the surrounding rock under three-way stress. Anchor pallet is usually an integral part of the pipe-seam anchor, including components such as rod body, welding ring, rolling head, retaining ring and pallet. There are various materials, shapes and types of anchor pallets made, and the common ones are butterfly pallets and flat pallets. In mines, butterfly-shaped trays usually have better load-bearing effect than flat plate-shaped trays, and can more effectively fix and support the structure above and below the coal seam.

Selection of anchor pallet considerations:

1. Ensure that the anchor rod tray and the anchor rod body are matched in terms of strength to avoid the occurrence of anchor penetration due to the insufficient strength of the anchor rod tray.

2. Ensure that the anchor tray matches the anchor rod body in the support structure to avoid the uneven force on the anchor rod body and nut due to the mismatch between the anchor rod body and the tray in the support structure, thus affecting the support effect of the roadway.

Advantage of anchor pallet:

it has the advantages of strong bearing capacity, improving the internal stress state of anchor pallet and saving material.
