Mining Resin Anchoring Agent

Product Details of Mining Resin Anchoring Agent

Anchor agent is the use of high-strength anchor special unsaturated polyester resin and marble powder, accelerator and auxiliary materials, according to a certain proportion of the mastic-like bonding material, with special polyester film will be divided into two-component packaging with the curing agent medicine volume.

Product features of Mining Resin Anchoring Agent:

1. speedy load bearing, anchoring overall performance much like metallic pre-buried components. it has the characteristics of "two rapid and one excessive", i.e. fast curing time (velocity adjustable), rapid strength growth and excessive strength. after installation, it can't only undergo the load in time, however additionally has big anchoring force.

2. resin anchoring agent adaptability, bonding item huge. bonding formed, complex massive skinny plate shape, can anchor an expansion of timber, metallic, fiberglass body and other rigid objects.

3. Good fatigue strength. Resin anchors can be widely used for structural reinforcement, rock support, equipment foundation fixing, dam crack repair and high-rise building exterior stone dry hanging, metal or curtain wall frame installation and fixing.

4. Water-resistant resin anchoring agent in addition to the above characteristics, when there is the presence of water, has the characteristics of fast enhancement, high strength, to avoid the impact of water on the curing rate of resin anchoring agent, compressive strength and anchoring force.

Scope of application of Mining Resin Anchoring Agent:

Resin anchoring agent is not only used in shaft support, shaft installation, pre-stressing anchor reinforcement for water and electricity projects, but also has its wide application place in the fields of building reinforcement, highway repair, tunnel construction, foundation rooting, equipment foundation and component anchoring.

Product Description of Mining Resin Anchoring Agent

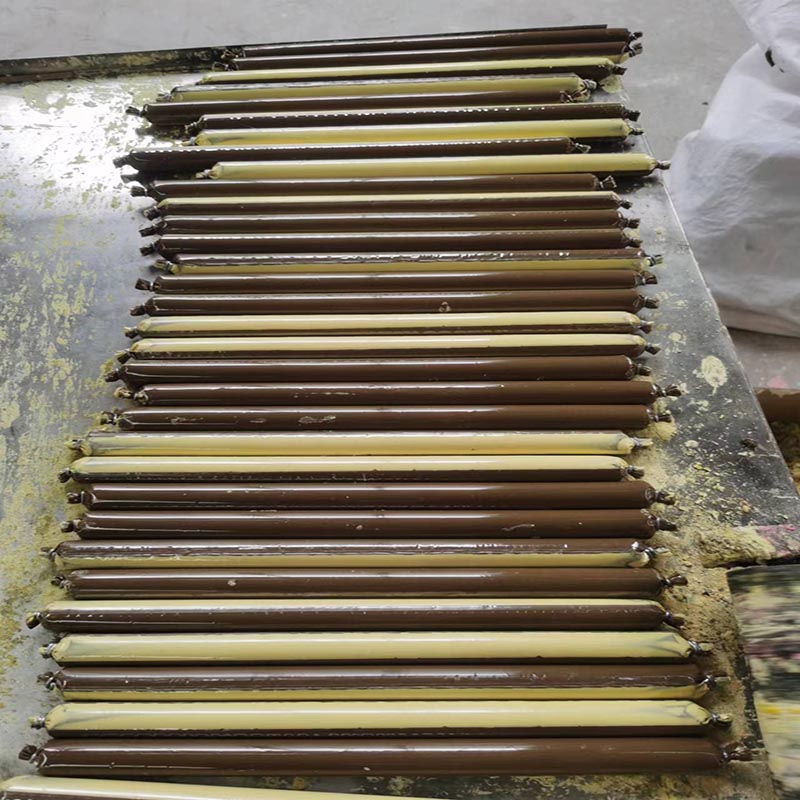

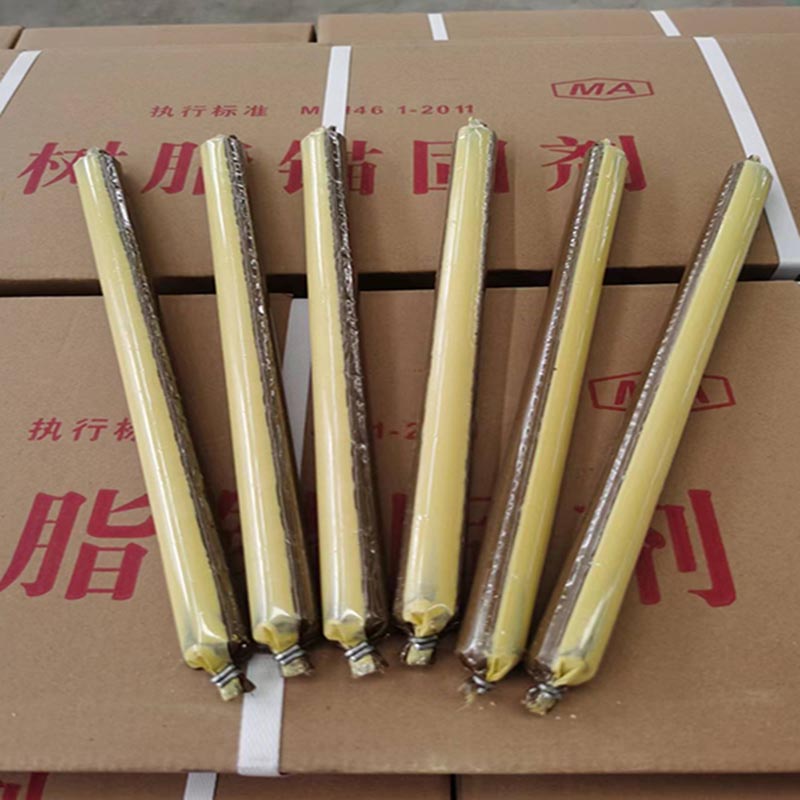

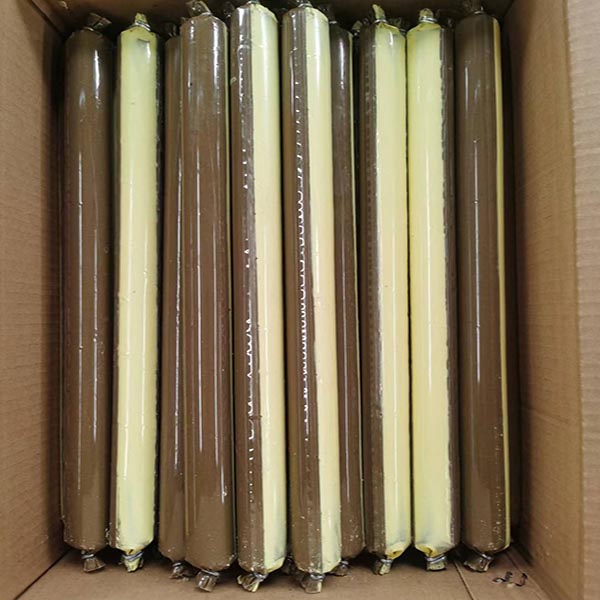

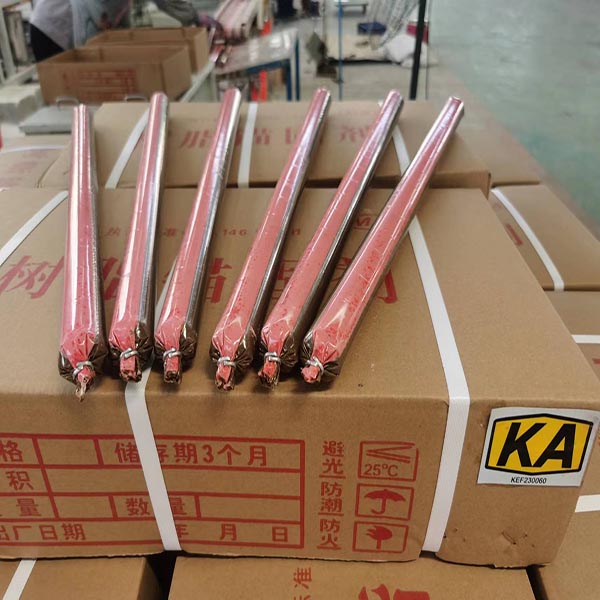

Resin anchoring agent is fabricated from unsaturated polyester resin, curing agent, accelerator and other auxiliary materials, in keeping with a sure percentage of the viscous form of anchoring bonding material, by way of polyester film split packaging inside the form of medication rolls, with fast curing at room temperature, excessive adhesive strength, dependable anchoring pressure and sturdiness and different true performance.

Usage of Mining Resin Anchoring Agent:

1.in keeping with the surrounding rock lithology, geological conditions, layout anchor guide parameters, consistent with the necessities of production operations to pick the resin anchoring agent specs, fashions.

2.for the ease of word anchor set up, the intensity of drilling hollow need to be 60~80mm less than the length of anchor.

3.after the anchor hole is drilled, before installing the anchor, pressurized air need to be used to eliminate floating dust and water inside the hollow.

4.installation of anchor rods: use the anchor rod to slowly ship the anchoring agent to the bottom of the hole, then begin the agitator to drive the rod to rotate, advance the rod to the lowest of the hole at a uniform pace, mix and stir the 2 components of the anchoring agent, and play the role of anchoring. pick the rotational velocity of the mixing machinery ≥ r/min, and the mixing time is operated in step with the time laid out in desk i. it's miles strictly prohibited to turn at the mixer inside the case that the anchoring agent is not introduced to the bottom of the hole.

5.After the end of mixing, wedge the rod in time, and do not make the rod move during the waiting time to ensure the quality of anchoring.

6.After meeting the waiting time specified in Table I, the nut can be tightened on the pallet, and the designed anchoring force can be reached after reaching the bearing time.

7.Anchoring agent must be carefully checked before use color and feel, soft texture, appearance intact can be used. If there is hardening, caking, rupture, deterioration and other abnormal phenomena, prohibit the use.

8.After the installation, the anchoring quality should be checked, and the anchoring force should be tested according to the regulations. If the anchoring force is found to be not in accordance with the requirements, remedial measures should be taken.

Specifications and Parameters of Mining Resin Anchoring Agent

Note: Specified under (22±1) C ambient temperature conditions.
