Advantages of threaded steel anchor
Anchor rod full thread full length equal strength, than the same specification anchor rod carrying capacity increased by 40%; expand the scope of application of the anchor rod, can reach the end of the anchor, extension of the anchor and the full anchor; easy to operate, low price and so on. Right-handed wire steel resin anchor rod type body with equal strength can achieve a good match with anchor hole diameter and resin maki roller diameter, with strong anchor force, high extension, safety and reliability, high quality and low consumption, easy to use and so on.
Description of rebar anchors
Reinforcing anchors are divided into longitudinal ribless reinforcing resin anchors (called left-handed anchors) and equal-strength reinforcing resin anchors (called right-handed anchors). Left-handed and right-handed anchors implement the MT146.2-2011 standard, which is the basic component of roadway support in contemporary coal mines, where the surrounding rock of the roadway is tied together so that the surrounding rock supports itself. Today, anchors are used not only in mines, but also in engineering to actively reinforce slopes, tunnels and dams. Anchor as a deep layer of the tensile element, it is connected with the structural structures on one side, the other end of the deep layer, the whole anchor is divided into the free section and anchoring section, the free section refers to the anchor head of the tensile force to the anchor fixed area, its function is to apply prestressing force to the anchor; anchoring section refers to the area of the cement slurry will be the prestress tendon bound with the bottom layer, its function is to increase the friction effect of the anchoring fixed bound with the bottom layer, increase the anchoring fixed pressure-bearing role, the anchor of the fixed and the bottom layer, and the anchor of the fixed. The function is to increase the friction between the anchor fixed and the soil layer, increase the pressure-bearing effect of h
Wapeningsanker Product Technische Parameters
Materiaal 20MnSi Sterkte
Opbrengststerkte (MPa) Treksterkte (MPa) Rektarief (%) Opbrengstlading (KN) Treklading (KN) Kg/m Specificatie
φ16 ≧345 ≧510 ≧25 ≧69 ≧100 1.6
φ18 ≧345 ≧510 ≧25 ≧87 ≧126 2.0
φ20 ≧345 ≧510 ≧25 ≧108 ≧156 2.5
φ22 ≧345 ≧510 ≧25 ≧131 ≧189 3.0
Installation conditions.
1、Determine the position of the anchor hole according to the design requirements, use an eye drill, anchor drill or electric coal drill to drill the eye, the depth is 80-100mm shorter than the length of the anchor.
2、Extend into the bottom of the eye with pressure air pipe, and blow the rock dust into the hole by compressed air.
3、Diameter of drill hole should be 6-12mm larger than the diameter of anchor rod.
4、Feed the medicine roll into the bottom of the eye with the anchor, start the mixing device to mix, and strictly control the mixing time according to the requirements of resin anchor fixing agent.

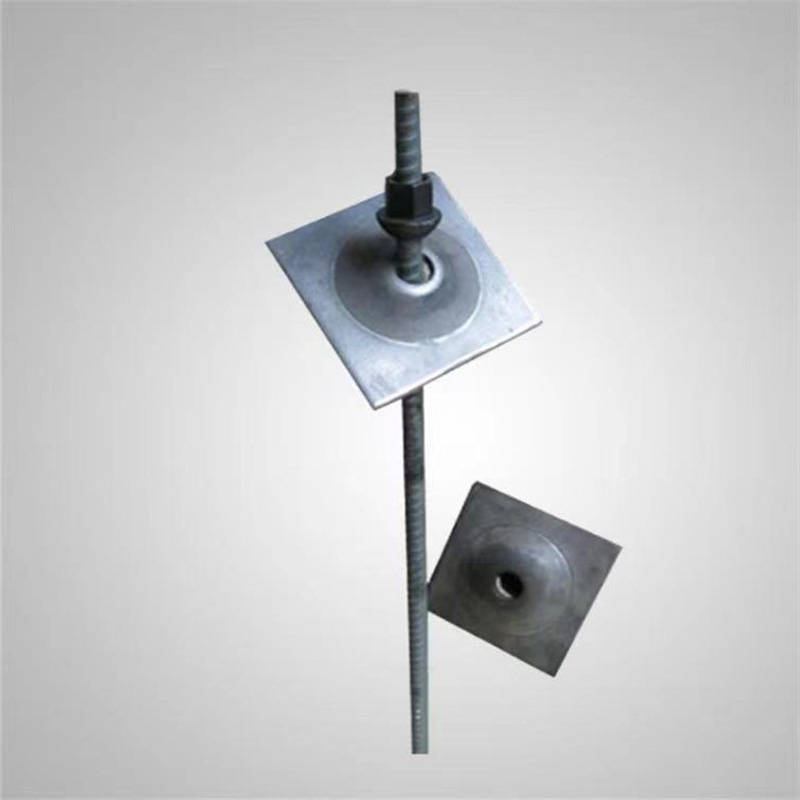

5、After reaching the curing time, put on the tray and turn the nut.
Our factory mainly supplies the following products:

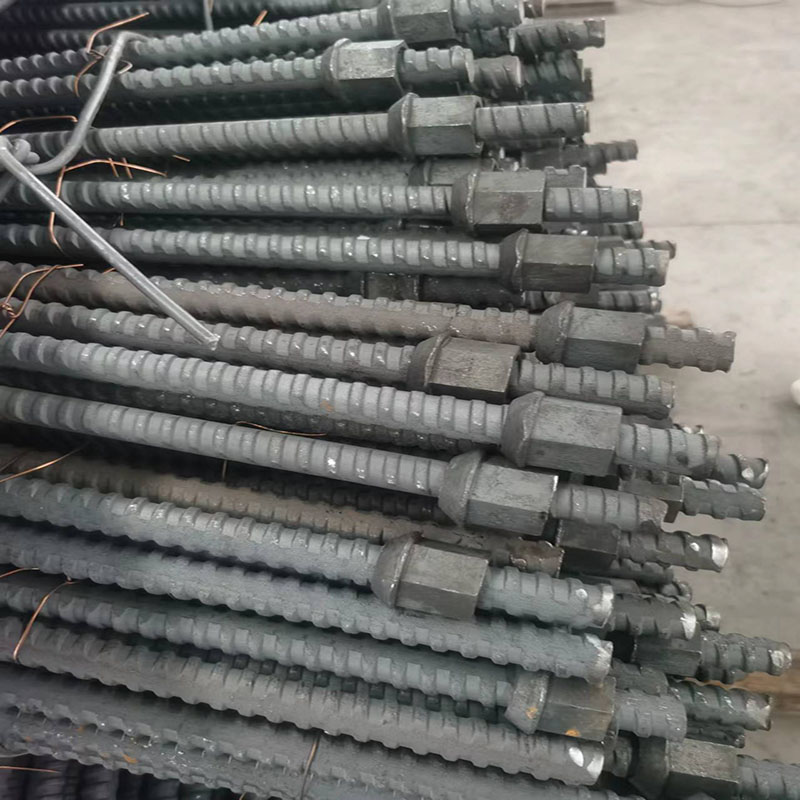

16# no longitudinal rib (equal strength) thread anchor, 18# no longitudinal rib (equal strength) thread anchor, 20# no longitudinal rib (equal strength) thread anchor, 22# no longitudinal rib (equal strength) thread anchor, 24# no longitudinal rib (equal strength) thread anchor.
