Product Description:

Right Hand Rebar is a popular Popular Rebar that has gained a prominent position in the construction industry for its superior performance and reliability. This High Strength Rebar utilizes an advanced production process that ensures excellent tensile strength and durability, enhancing the overall stability and seismic resistance of buildings. As a Top Reinforcing Steel, the Right Hand Rebar not only possesses high strength and toughness, but also has excellent ductility and weldability, enabling it to maintain a good working condition in various harsh environments. Its unique threaded design increases the grip with concrete, significantly improving the safety and durability of the structure. Whether for high-rise buildings, bridges or infrastructure projects, right-hand threaded rebar is the ideal choice, providing a solid foundation and reliable guarantee for engineering projects.

Product specification parameters:

Anchor rod technical characteristics:

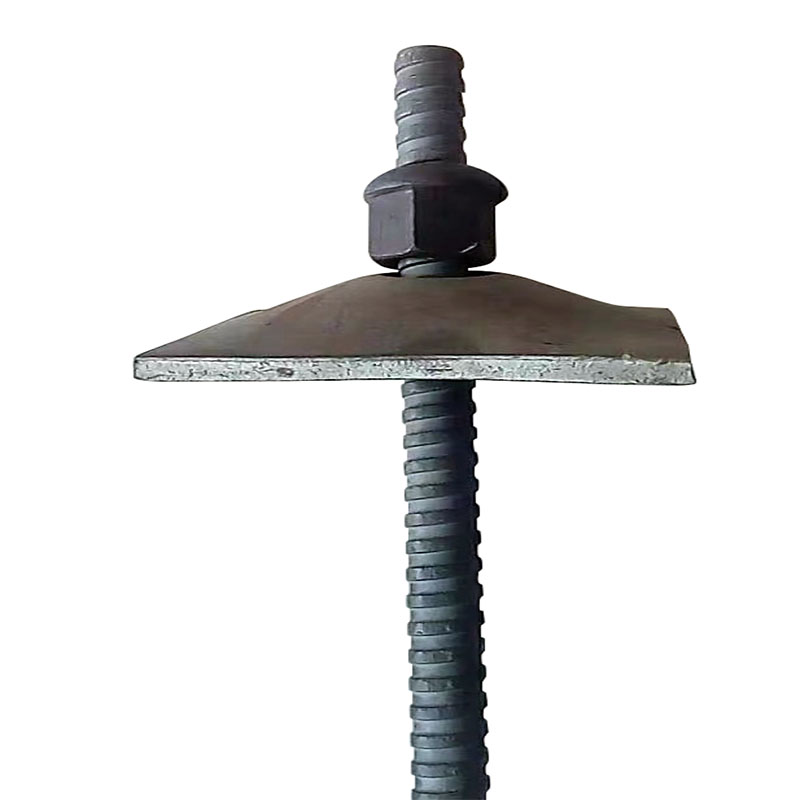

  Right-hand anchor is a commonly used geo-engineering support material, its main feature is good tensile strength and durability performance. The rods have rolled continuous threads throughout the length and equal strength throughout the length; the fastening end is equipped with pre-stressing spacers and ball-shaped nuts.

Anchor rods are classified according to the diameter, generally the most commonly used are: 16mm, 18mm, 20mm, 22mm; anchor rods can realize a better match with the diameter of the anchor hole and the diameter of the resin maki-e, with strong anchor force, high elongation, safety and reliability, high quality and low consumption, easy to use and so on.

Right twist anchor rod features:

(1)Reasonable structure, solving the shortcomings of low strength at thread and pat flat of anti-twist anchor.

(2)The bearing capacity is 40% higher than the same specification of anti-twist anchor.

(3)Simple operation, low price, widely used in coal mines, railroads, hydropower and other projects all kinds of roadway support.

Right-hand anchor installation steps:

1、According to the design requirements to determine the position of the anchor hole, with an eye drilling machine, anchor drilling rig or coal electric drill drilling, . The depth is 80-100mm shorter than the length of anchor.

2、Extend into the bottom of the eye with a pressure pipe, through the compressed air, the hole will be blown clean of rock dust.

3、Diameter of the hole should be 6-12mm larger than the diameter of the anchor.

4、Feed the medicine roll into the bottom of the eye with the anchor, start the mixing device for mixing, and strictly control the mixing time according to the requirements of resin anchor fixing agent.

5、After reaching the curing time, put on the tray and tighten the nut.
