Accessories Perforated Metal Sheet

Product Advantages:

Anchor rod trays and anchor cable trays are made of alloy plates with special profile design to provide good stressing effect. They are designed to be lightweight and easy to install and can be used with all types of anchors and cables. These trays improve surface control and make anchors and cables more stable and reliable.

  Contact Now E-Mail Telephone WhatsApp
Product Details

Product details:

Anchor pan is a kind of equipment used for roadway support, which changes the mechanical state of the surrounding rock through the joint action of anchor rods and surrounding rock to maintain the stability of the roadway. The anchor plate makes the roadway form a whole and stable rock belt around the roadway, thus preventing the surrounding rock from loosening and deformation, and protecting the roadway from the influence of geological forces. The use of anchor plates can increase the bearing capacity of the roadway, extend the service life of the roadway and improve the safety of the working environment.


Accessories Perforated Metal Sheet


Specifications and parameters:

Pallet Size

(mm)

carrying capacity(kn)

Pallet Size

(mm)

carrying capacity(kn)

note

120x120x5

≧100

200x200x10

≧360

Partial specifications

120x120x6

≧115

200x200×12

≧420

120x120x8

≧130

250x250×8

≧320

150x150×5

≧135

250x250x10

≧400

150x150x6

≧170

250×250x12

≧440

150x150x8

≧230

300x300x10

≧420

150x150x10

≧290

300x300x12

≧480

120x120x10

≧260

300x300x14

≧520


Accessories Perforated Metal Sheet


Product description:

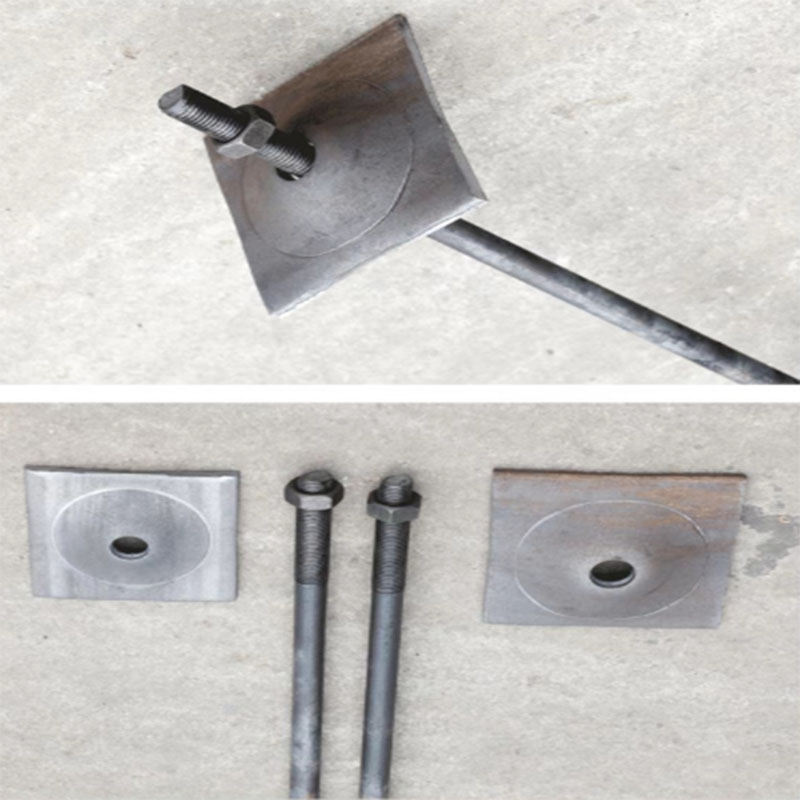

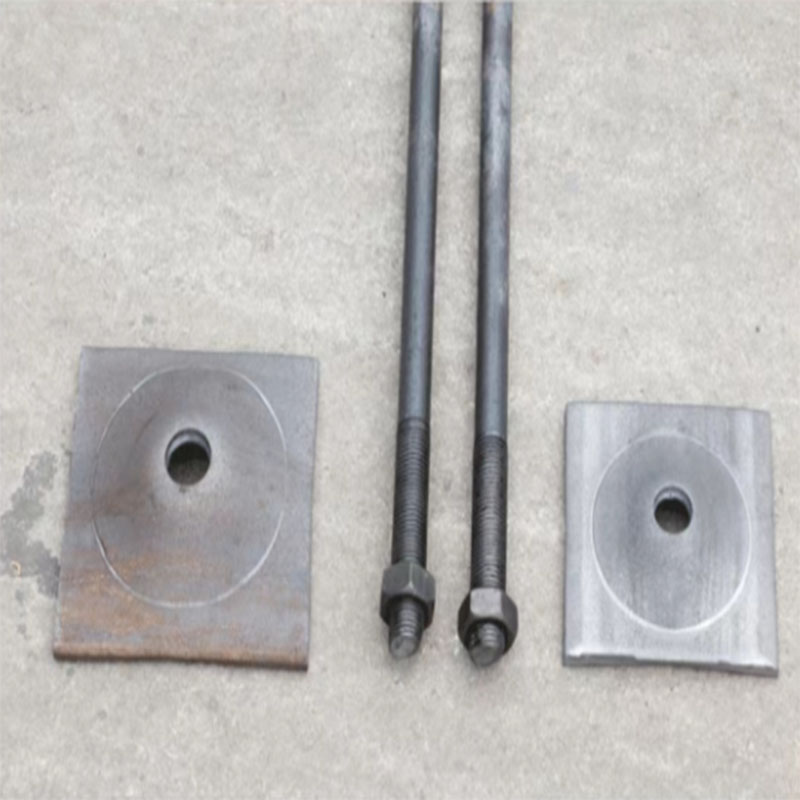

Anchor plate is a material used for mine support, which is used in conjunction with anchor rods to support and secure the surrounding rock. Anchor plates are usually made of steel and can be round, square or diamond shaped, depending on the need and design.

Anchor plates are used in combination with anchor rods to place the anchor rods in the rock mass and in close contact, thus increasing the support and fixing effect of the anchor rods. The selection and design of anchor plates should be based on specific geological conditions and engineering requirements to ensure safe and reliable support of the mine.


Accessories Perforated Metal Sheet


Usage:

Determine the hole position of the anchor according to the design requirements and use the drilling rig to drill the holes.

Blow out the rock dust in the hole with compressed air to ensure the hole is clean.

Ensure that the diameter of the hole is 6-12mm larger than the diameter of the anchor rod to provide enough space for subsequent mixing and fixing.

Use the anchor rod to inject the anchoring agent into the bottom of the hole, start the mixing device for mixing, and strictly control the mixing time to meet the requirements of the resin anchoring agent.

After waiting for a certain curing time, put on the anchor disk and tighten the nut to ensure the anchors are fixed.


Accessories Perforated Metal Sheet
