The advantages of anchor pallets are as follows:
1.Made of high-strength plate, it can withstand greater pressure and tension to ensure the fixing effect.
2.The special shape design enables the anchor tray to get the best effect when under force, increasing the stability of fixing.
3.The anchor tray is relatively lightweight and easy to install and adjust the position, which improves the construction efficiency.
4.The use of anchor pallets can effectively control the surface shape of the formation, maintain the stability of the formation, and prevent rock sliding and caving.

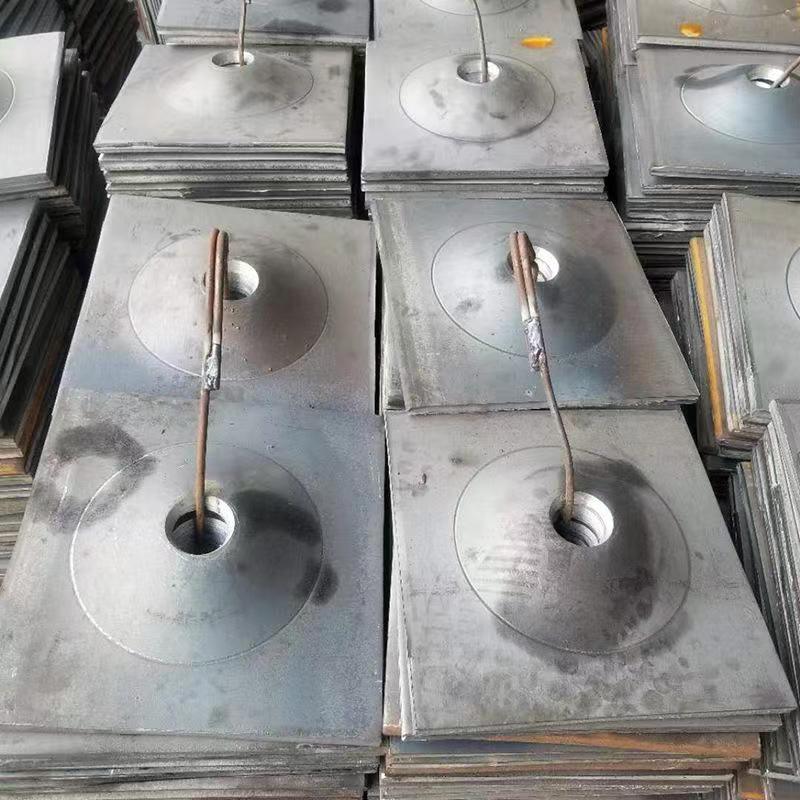

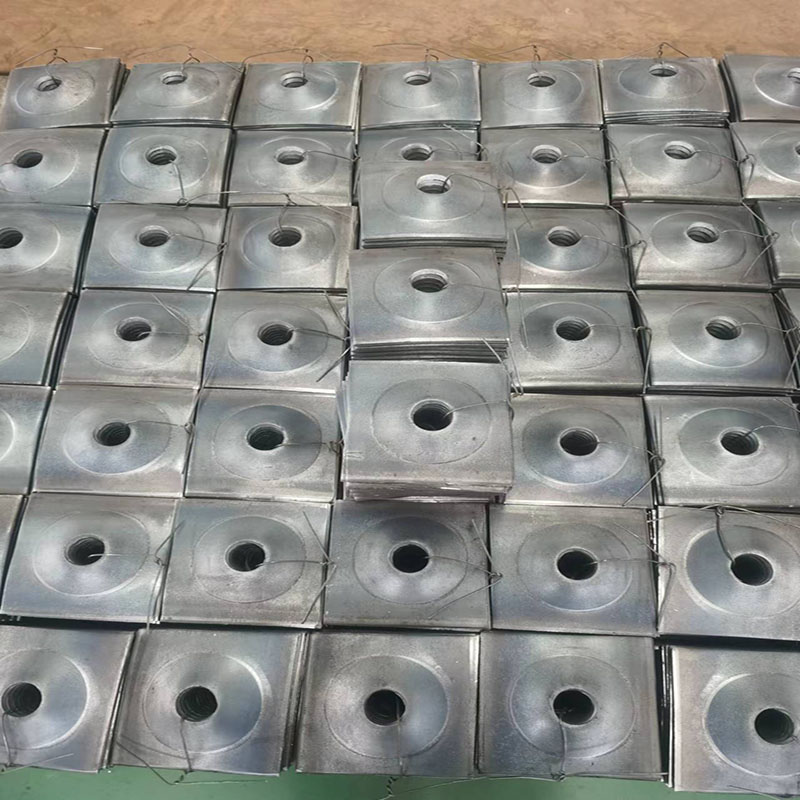

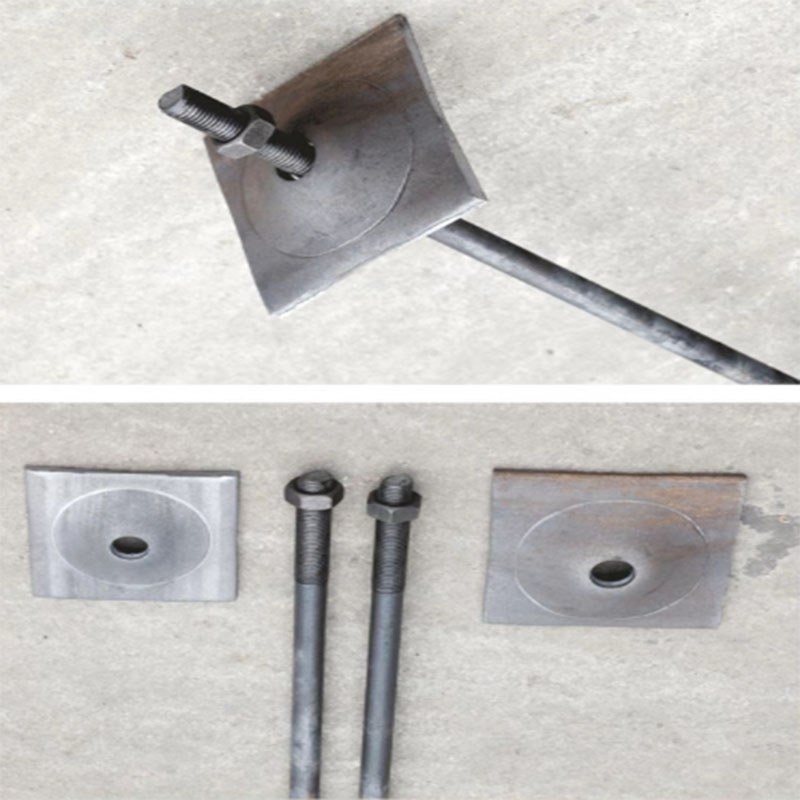

Anchor Tray Description

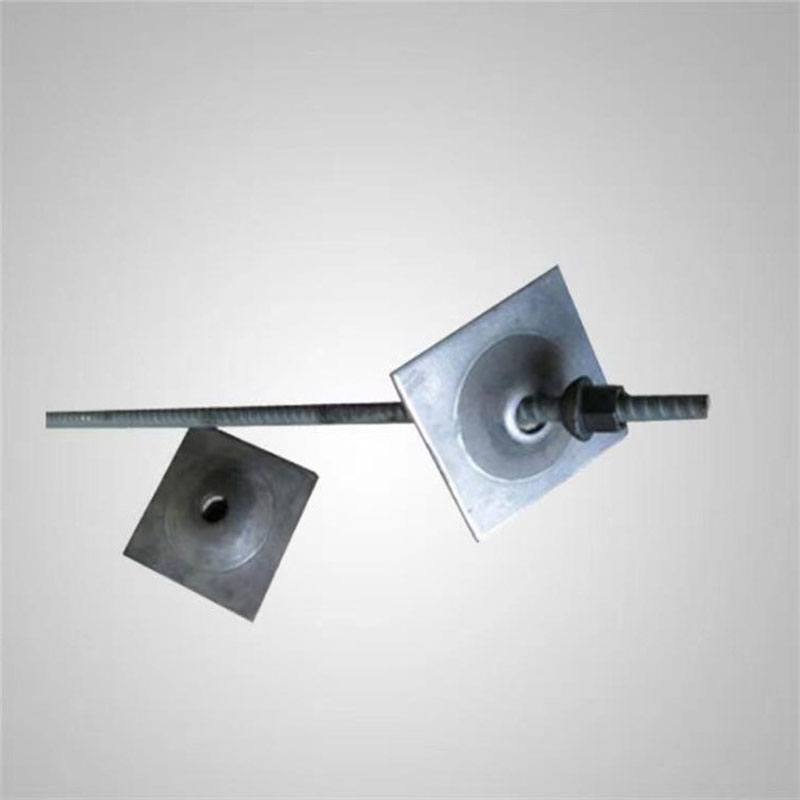

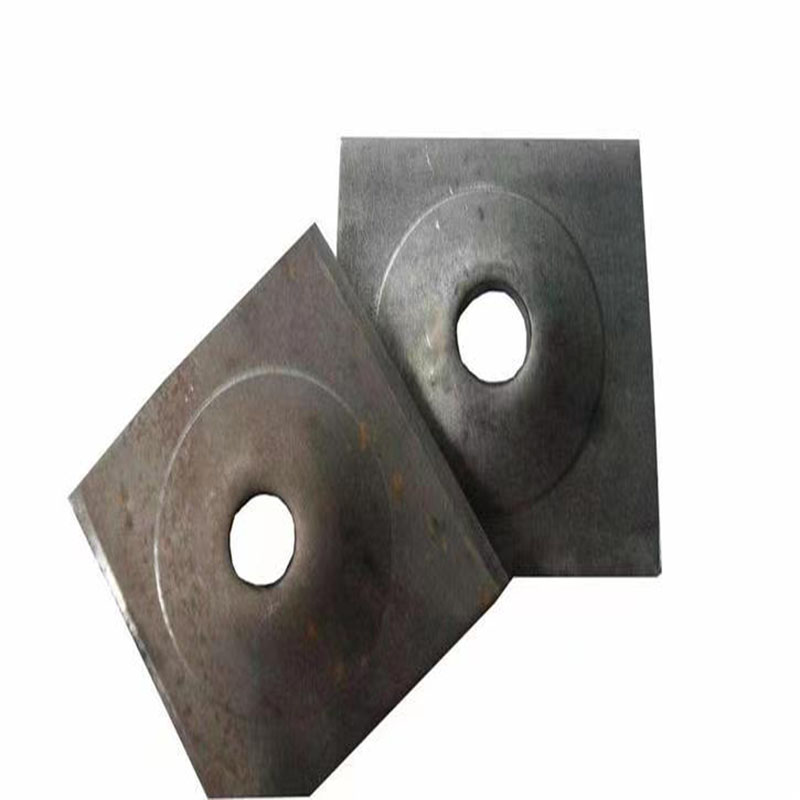

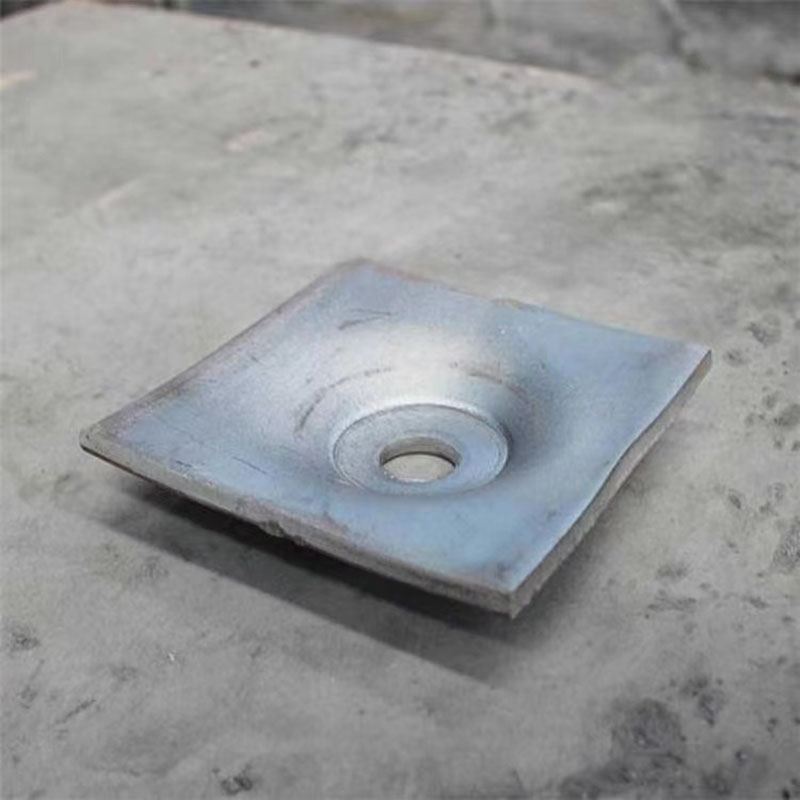

An anchor tray is a fixing device used in coal mines that is made from a high-strength steel tube with longitudinal slits. It is installed in drill holes slightly smaller than the diameter of the pipe, which immediately exerts radial pressure on the hole wall and stops the surrounding rock from sliding down. At the same time, the pallets of the anchor tray provide additional load-bearing capacity. In this way, the surrounding rock is under three-way stress. Anchor pallet is an integral part of the pipe slit anchor, and the materials used in its production include the rod made of welded ring and rolled head, the retaining ring made by cutting around the ring, and the pallet made by shearing, punching, and punching, and so on. There are various types of anchor pallets, commonly used including butterfly pallets and flat pallets, of which butterfly pallets are better than flat pallets in terms of bearing effect.
Specifications and parameters：
Pallet Size（mm） | carrying capacity (kn) | Pallet Size（mm） | carrying capacity(kn) | note |
120x120x5 | ≧100 | 200x200x10 | ≧360 | Partial specifications |
120x120x6 | ≧115 | 200x200×12 | ≧420 | |
120x120x8 | ≧130 | 250x250×8 | ≧320 | |
150x150×5 | ≧135 | 250x250x10 | ≧400 | |
150x150x6 | ≧170 | 250×250x12 | ≧440 | |
150x150x8 | ≧230 | 300x300x10 | ≧420 | |
150x150x10 | ≧290 | 300x300x12 | ≧480 | |
120x120x10 | ≧260 | 300x300x14 | ≧520 |
Anchor tray plays an important role in the anchor support system, and its main functions are as follows:
1.Transferring moment: the anchor tray can transfer the thrust generated by the nut locking moment to the roof plate to form the initial anchor force, thus strengthening the support effect of the surrounding rock.
2.Withstand working resistance: the tray transfers the pressure of the roadway roof plate to the anchor rods to form working resistance, which jointly reinforces the surrounding rock and prevents the displacement of the roadway roof plate.
3.Matching strength: choose the appropriate anchor tray specifications to ensure that it matches the strength of the anchor rod body, avoiding the phenomenon of anchor perforation and ensuring the integrity and stability of the anchor system.
4.Matching support structure: Ensure that the anchor tray matches the anchor rod body in the support structure, so that the force of each part of the anchor rod is uniform, to avoid affecting the support effect of the roadway.
The method of using anchor pallets is as follows:
1.Determine the hole position of the anchor according to the design requirements and use the drilling rig to make holes in the surrounding rock.
2.Ensure the hole is clean by blowing the rock debris out of the hole using a pressurized fan.
3.Ensure that the diameter of the rock hole is 6-12mm larger than the diameter of the anchor rod to accommodate the anchor rod and anchoring agent.
4.Use the anchor rod to inject the anchoring agent into the bottom of the hole, start the mixing device to mix, and strictly control the mixing time according to the requirements of the resin anchoring agent.
5.After waiting for proper curing time, put on the anchor rod tray and tighten the nut to ensure that the anchor rod and tray are tightened firmly.
