High Quality Stainless Steel Square Washers

Advantages of square steel plates

Good force effect,

 lightweight and easy to install,

 matching with all kinds of anchor rods and anchor ropes to improve the surface control effect.

  Contact Now E-Mail Telephone WhatsApp
Product Details

Product description:

Anchor disk:A kind of mine support material, used to cooperate with the support of anchor rods (rods placed in the rock body and in close contact with the rock body), there are round, square, diamond-shaped.

High Quality Stainless Steel Square Washers

Specifications and parameters:

Pallet Size

(mm)

carrying capacity(kn)

Pallet Size

(mm)

carrying capacity(kn)

note

120x120x5

≧100

200x200x10

≧360

Partial specifications

120x120x6

≧115

200x200×12

≧420

120x120x8

≧130

250x250×8

≧320

150x150×5

≧135

250x250x10

≧400

150x150x6

≧170

250×250x12

≧440

150x150x8

≧230

300x300x10

≧420

150x150x10

≧290

300x300x12

≧480

120x120x10

≧260

300x300x14

≧520

High Quality Stainless Steel Square Washers

Usage:

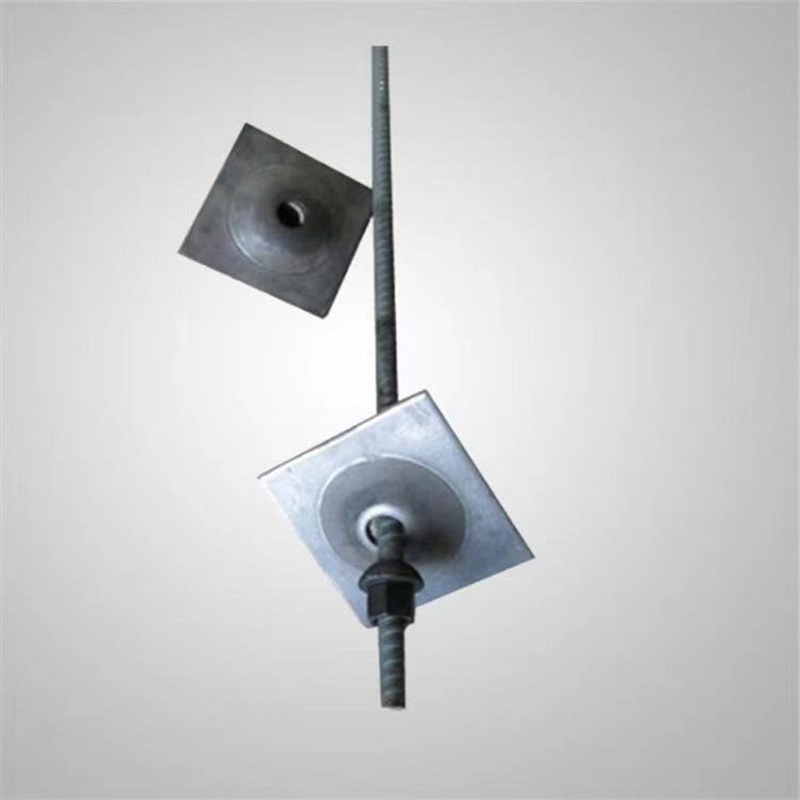

Anchor disk and anchor metal rod, nut to form a set of anchor use.

1.First determine the hole position of anchor rods according to the design requirements, and drill holes with drilling rig.

2.Blow the rock powder in the hole with pressurized air.

3.The diameter of the rock hole is 6-12mm larger than the diameter of the anchor rod.

4.Feed the anchoring agent into the bottom hole with the anchor rod, start the mixing device for mixing, and strictly control the mixing time according to the requirement of resin anchoring agent.

5.After reaching the waiting time, put on the anchor disk and tighten the nut.

High Quality Stainless Steel Square Washers

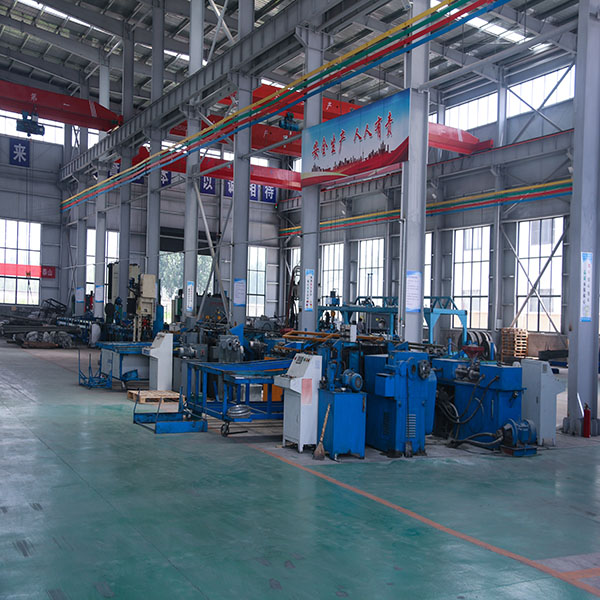

Corporate Scene

High Quality Stainless Steel Square Washers
