Stainless Steel Plate With Holes For Anchors

Product Details:

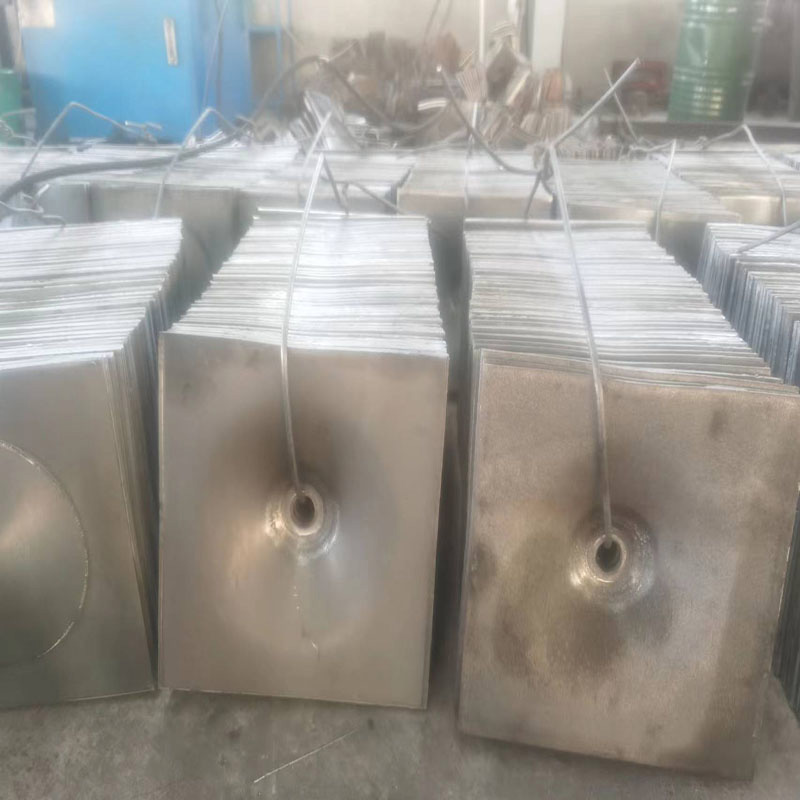

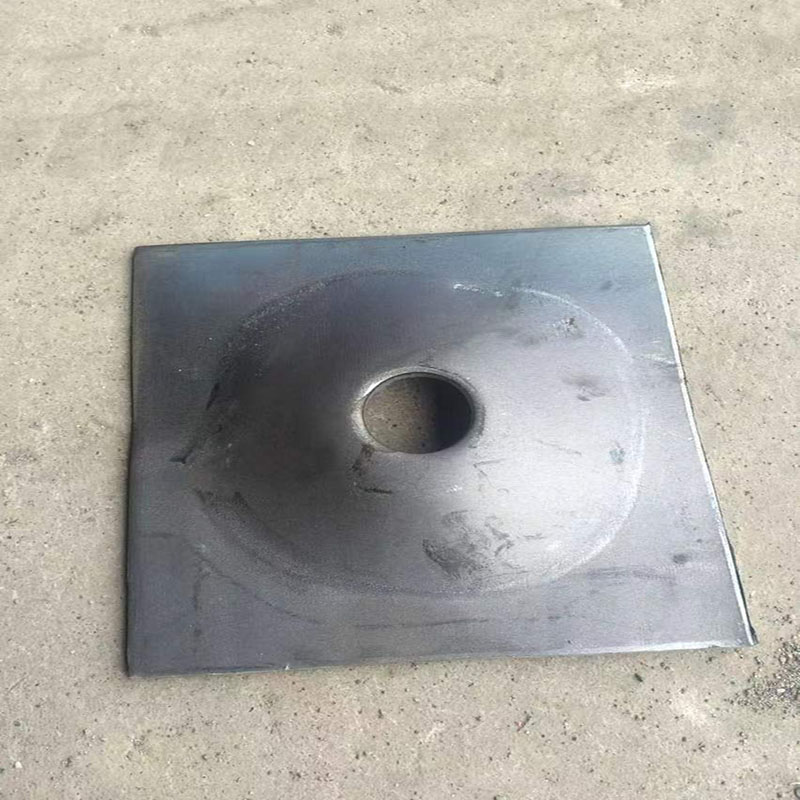

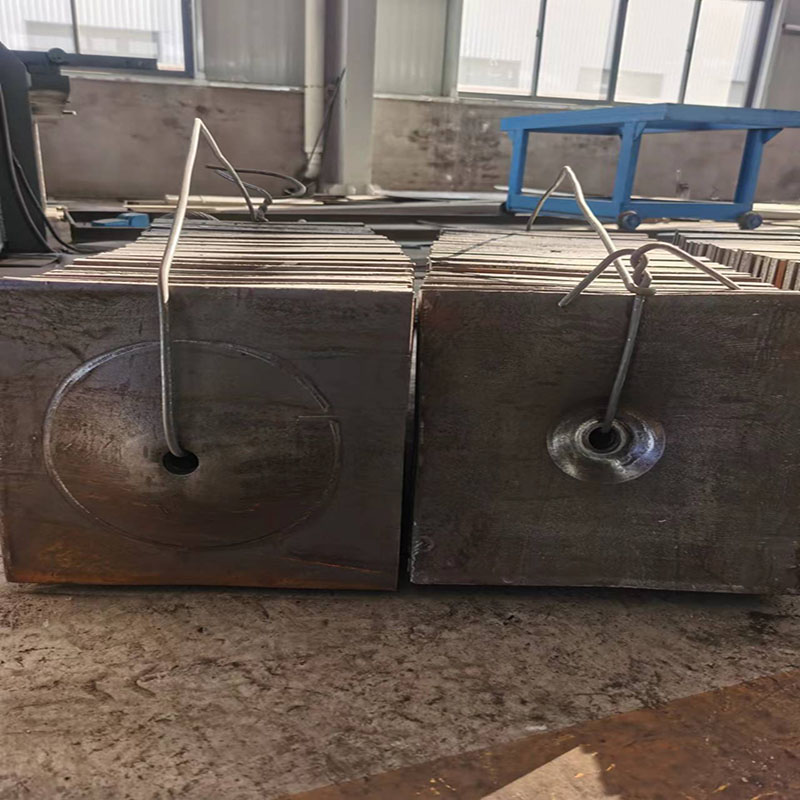

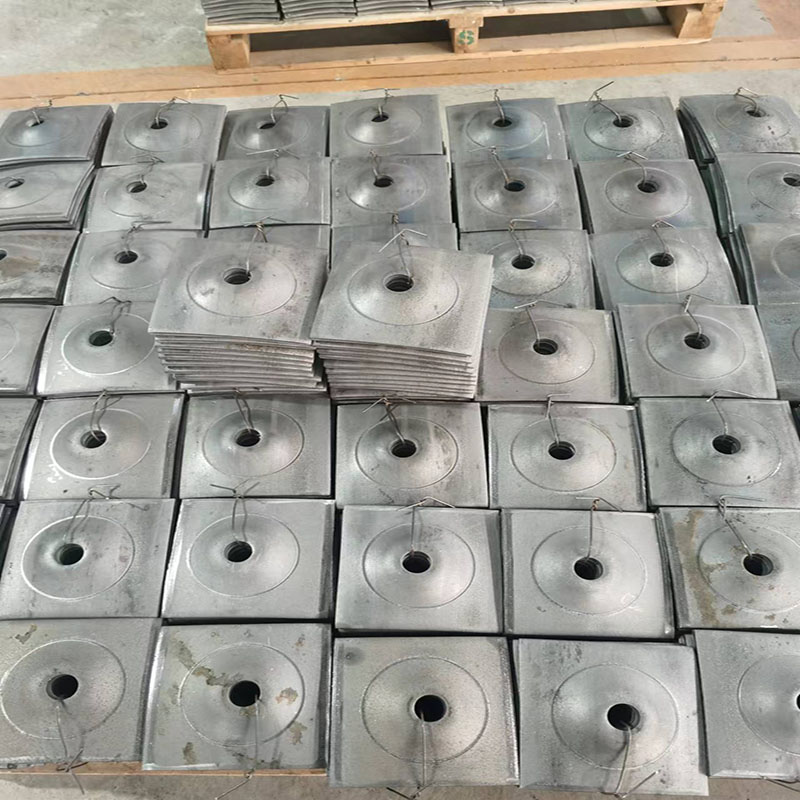

Nowadays the widely used anchor disk mainly includes square round hole anchor disk and round round hole anchor disk. The function of the anchor disk is to change the mechanical state of the surrounding rock through the anchors, which makes a whole and stable rock band around the roadway. The anchors work together with the surrounding rock to maintain the stability of the roadway.

Anchor plates are considered an active support method in mine support and can be considered a major change in the field of mine support. By effectively reinforcing the support system, anchor pans are able to provide more reliable support and protect the engineered structure from external forces.

The square round hole anchor disk and round round hole anchor disk are two common forms with their own characteristics and application scenarios. By correctly selecting and using the right type of anchor disk, you can ensure that the support system will perform optimally in underground and mining projects.

Specifications and parameters：

Product Description:

Anchor disk is an important material used for mine support, which is used to support and fix the rock body with anchor rods. Anchor disk usually has different shapes such as round, square, diamond, etc. to adapt to different engineering occasions and requirements of anchor rods. Through the combined use with anchor rods, anchor disk can make good contact in the rock body and provide strong support. Different shapes of anchor disk can be selected according to specific engineering requirements and rock body conditions to ensure the stability and reliability of the support system. In mine and underground projects, anchor disk is an important supporting element, which can effectively improve the stability of rock body and ensure the safe conduct of the project. The use of different shapes and sizes of anchor plates can meet the needs of different support projects and ensure the effectiveness of the support system.

Usage:

1.Determine the hole position of the anchor according to the design requirements and carry out the drilling operation with the drilling rig.

2. Use the pressurized air tool to blow the rock dust inside the hole to ensure the hole is clean.

3. Ensure that the diameter of the rock hole is required to be 6-12mm larger than the diameter of the anchor rod, so that there is enough space when installing the anchor rod.

4. Use the anchor rod to feed the anchoring agent into the bottom hole, start the mixing device for mixing, and control the mixing time strictly according to the requirements of resin anchoring agent.

5. After waiting for appropriate time, put on the anchor disk and tighten the nut to ensure the solidity of the anchor rod and anchoring agent.
