Fast And Powerful Quick-Setting Agent
Product Advantages of Fast And Powerful Quick-Setting Agent:
1. Short curing time.
2. Fast strength increase.
3.High strength.
4.It can provide support capacity in time.High initial anchorage force.
Product Details of Fast And Powerful Quick-Setting Agent
Anchor agent is the use of high-strength anchor special unsaturated polyester resin and marble powder, accelerator and auxiliary materials, in keeping with a positive proportion of the mastic-like bonding material, with special polyester film will be divided into -component packaging with the curing agent medicine extent.
Specifications and Parameters of Fast And Powerful Quick-Setting Agent
Parameter | CKа | CK | K | Z | M |
Characteristic | ultra-fast | Fast | Medium speed | Slow | |
Gel times | 8-25 | 8-40 | 41-90 | 91-180 | >180 |
Gel times | 10-30 | 10-60 | 90-180 | 480 |
Note: Specified under (22±1) C ambient temperature conditions.
Product features of Fast And Powerful Quick-Setting Agent:
1. Fast load bearing, anchoring performance similar to steel pre-buried parts. It has the characteristics of "two fast and one high", i.e. fast curing time (speed adjustable), fast strength growth and high strength. After installation, it can not only bear the load in time, but also has large anchoring force.
2. Resin anchoring agent adaptability, bonding object wide. Bonding shaped, complex large thin plate structure, can anchor a variety of wood, metal, fiberglass body and other rigid objects.
3. exact fatigue energy. resin anchors can be widely used for structural reinforcement, rock assist, device basis fixing, dam crack repair and excessive-upward thrust building exterior stone dry placing, steel or curtain wall body installation and fixing.
4. waterproof Resin anchoring agent in addition to the above traits, while there's the presence of water, has the characteristics of speedy enhancement, high power, to keep away from the impact of water at the curing price of resin anchoring agent, compressive power and anchoring force.
Scope of application of Fast And Powerful Quick-Setting Agent:
Resin anchoring agent is not only used in shaft support, shaft installation, pre-stressing anchor reinforcement for water and electricity projects, but also has its wide application place in the fields of building reinforcement, highway repair, tunnel construction, foundation rooting, equipment foundation and component anchoring.
Product Description of Fast And Powerful Quick-Setting Agent

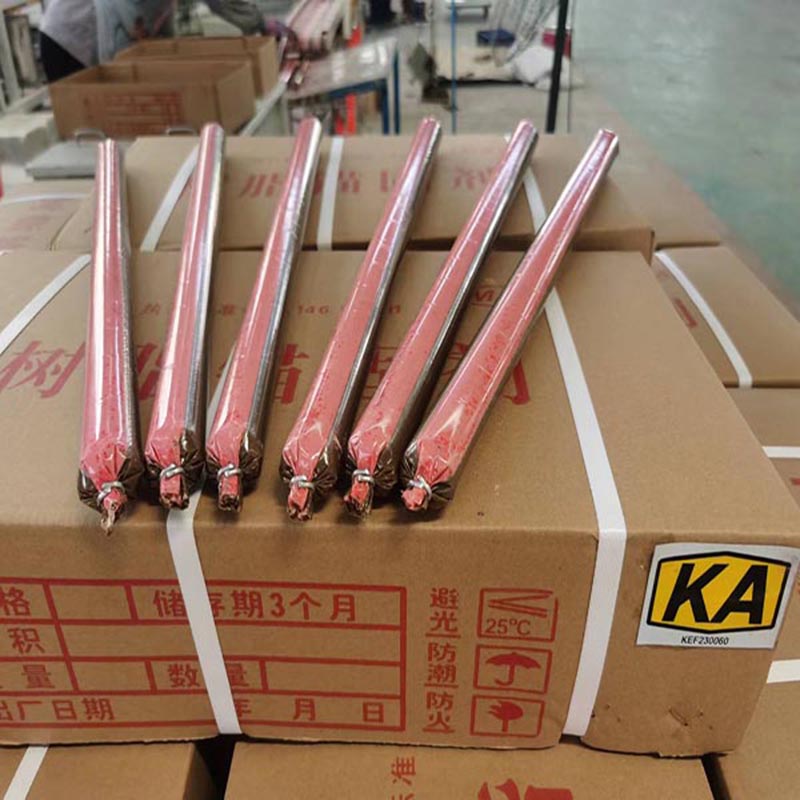

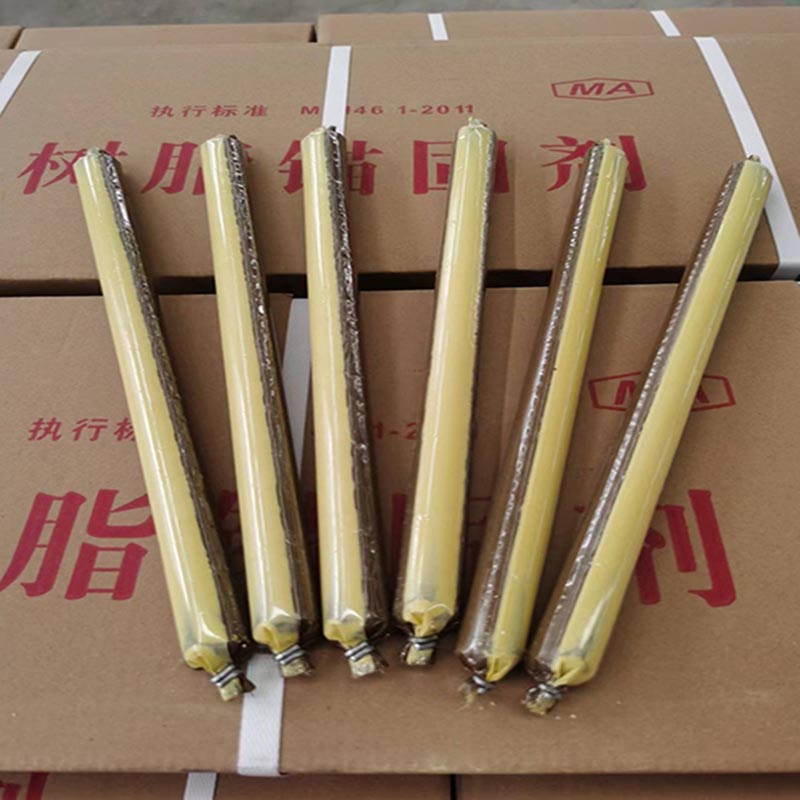

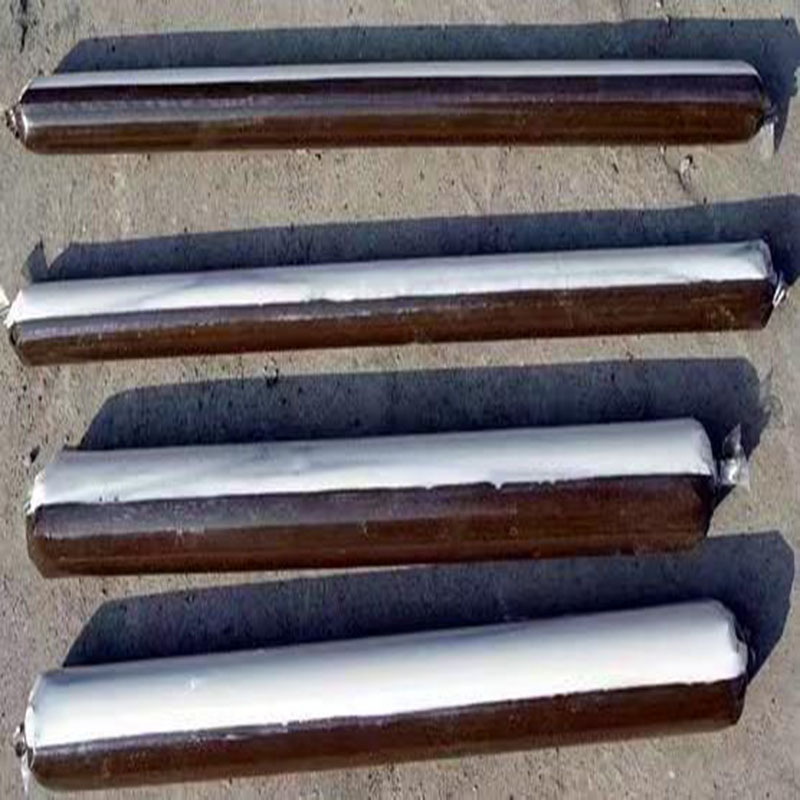

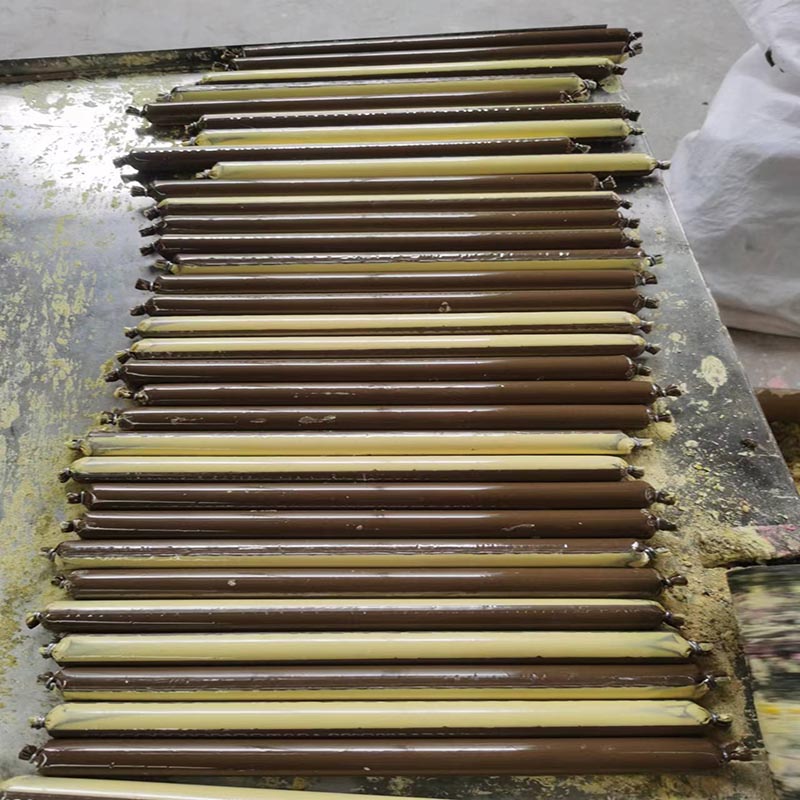

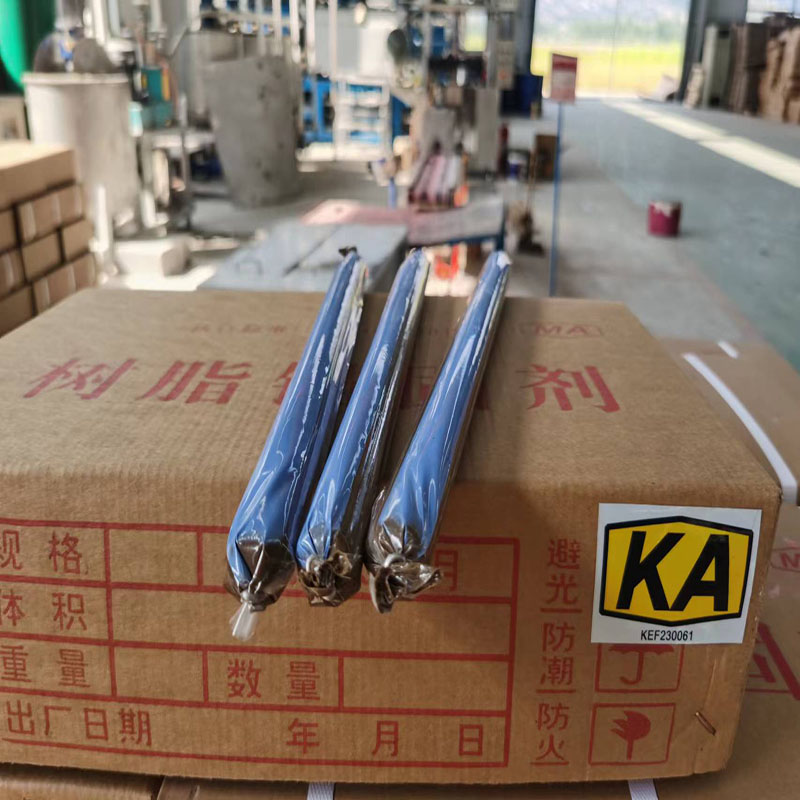

Resin anchoring agent is made of unsaturated polyester resin, curing agent, accelerator and other auxiliary materials, according to a certain proportion of the viscous form of anchoring bonding material, by polyester film split packaging in the form of medicine rolls, with fast curing at room temperature, high adhesive strength, reliable anchoring force and durability and other good performance.
Usage of Fast And Powerful Quick-Setting Agent:
1.According to the surrounding rock lithology, geological conditions, design anchor support parameters, according to the requirements of construction operations to select the resin anchoring agent specifications, models.
2.For the convenience of word anchor installation, the depth of drilling hole should be 60~80mm less than the length of anchor.
3.After the anchor hole is drilled, before installing the anchor, pressurized air should be used to remove floating dust and water in the hole.
4.Installation of anchor rods: use the anchor rod to slowly send the anchoring agent to the bottom of the hole, then start the agitator to drive the rod to rotate, advance the rod to the bottom of the hole at a uniform speed, mix and stir the two components of the anchoring agent, and play the role of anchoring. Select the rotational speed of the mixing machinery ≥ r/min, and the mixing time is operated according to the time specified in Table I. It is strictly prohibited to turn on the mixer in the case that the anchoring agent is not delivered to the bottom of the hole.
5.after the give up of blending, wedge the rod in time, and do no longer make the rod move in the course of the ready time to make sure the best of anchoring.
6.after meeting the ready time specified in desk i, the nut can be tightened at the pallet, and the designed anchoring force may be reached after achieving the bearing time.
7.anchoring agent ought to be cautiously checked before use shade and sense, tender texture, appearance intact may be used. if there is hardening, caking, rupture, deterioration and different extraordinary phenomena, prohibit the use.
8.after the set up, the anchoring first-class should be checked, and the anchoring force need to be examined according to the guidelines. if the anchoring force is discovered to be now not in accordance with the necessities, remedial measures should be taken.
