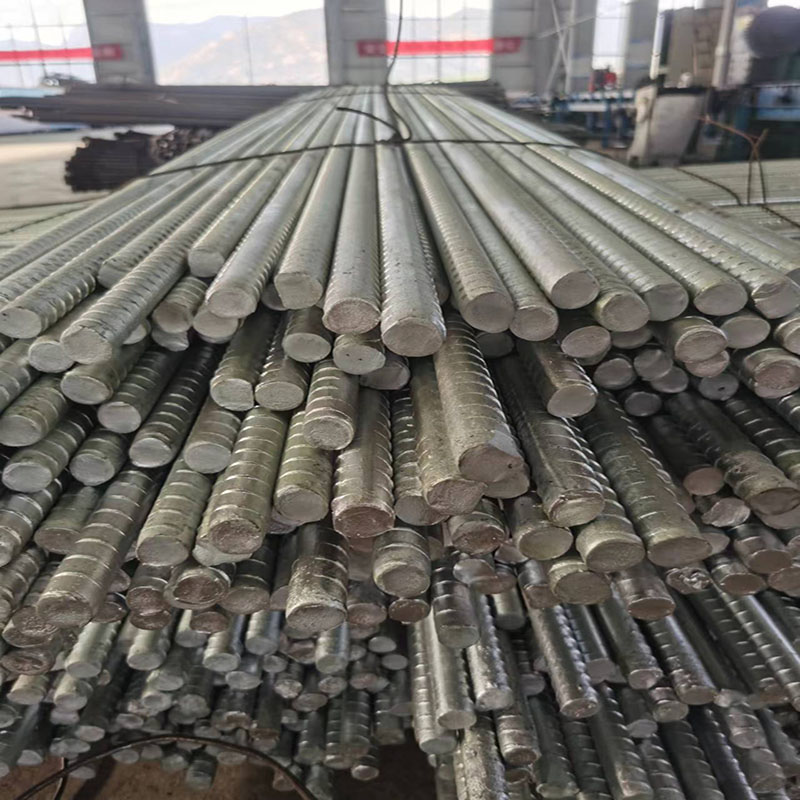

Galvanized Steel Rebar

Advantage:

Galvanized Steel Rebar offers excellent benefits in construction projects due to its durable nature and resistance to corrosion. The use of Galvanized Steel Rebar from a reputable Galvanized Steel Rebar Factory ensures high quality and reliable performance. Gerdau Rebar, a renowned manufacturer, produces top-notch Galvanized Steel Rods that provide enhanced protection against rust and prolong the lifespan of structures. With their superior strength and corrosion resistance, Galvanized Steel Rebar and Rods are essential components for ensuring the longevity and structural integrity of buildings and infrastructure.

  Contact Now E-Mail Telephone WhatsApp
Product Details

Product Details:

Galvanized Steel Rebar is a versatile construction material known for its superior durability and corrosion resistance. With a protective zinc coating, Galvanized Steel Rebar offers enhanced longevity and minimal maintenance requirements, making it ideal for various concrete reinforcement applications. Threaded Anchor Rods made from Galvanized Steel are commonly used to provide secure fastening and stability in construction projects, offering excellent load-bearing capacity. The high-quality Galvanized Steel Rods ensure reliable performance and long-term structural integrity, even in challenging environments. Whether it's for heavy-duty projects or general construction needs, Galvanized Steel Rebar and Rods are essential components known for their strength, resilience, and ability to withstand the test of time.


Galvanized Steel Rebar


Product Parameters:

Technical Parameters

Performance

 Material

Specification

Outer diameter

 of rod (mm)

carrying capacity(kn)


Nominal size

tolerance

HRB335

HRB400

HRB500

HRB600

HRB335

norm

carrying

capacity

φ-16

16

+0.3/-0

≧100

≧120

≧135


120x120x5

≧100

φ-18

18

+0.3/-0

≧126

≧150

≧172

≧206

150x150x5

≧135

φ-20

20

+0.3/-0

≧157

≧180

≧210

≧260

150x150x6

≧170

φ-22

22

+0.3/-0

≧190

≧225

≧250

≧310

150x150x8

≧230


Galvanized Steel Rebar


Description:

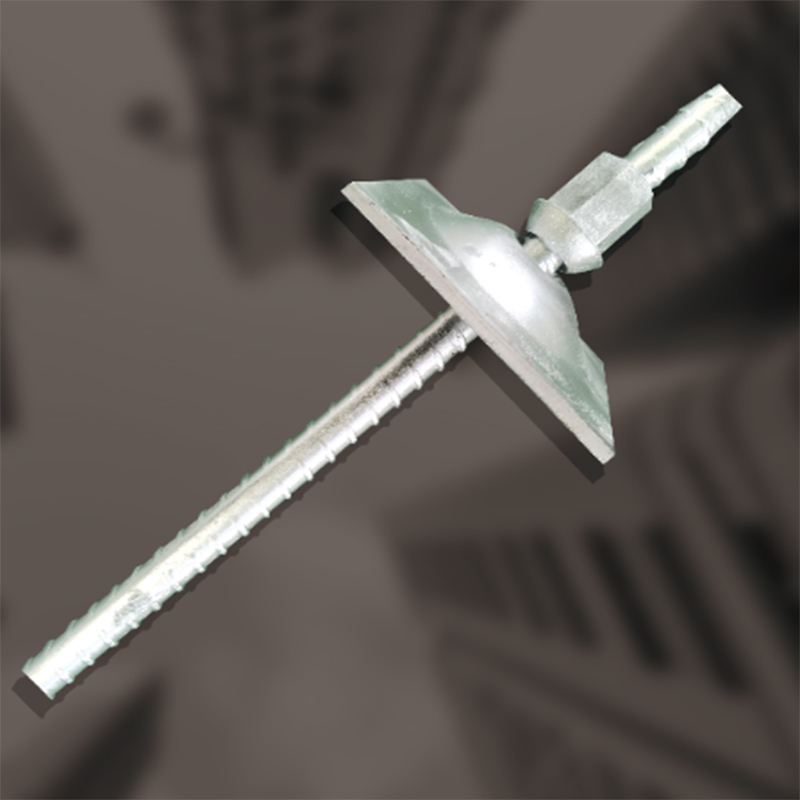

Rebar anchor is a key support material in modern mining and engineering technology, which is divided into two types: left-handed and right-handed, in accordance with MT146.2-2011 standard. It plays an important role in roadway support, binding the surrounding rock firmly and realizing the support of the surrounding rock itself. Nowadays, rebar anchors are not only widely used in mines, but also used in slopes, tunnels, dams and other projects for active reinforcement. As a component that penetrates deep into the ground and undergoes tensile force, rebar anchors are divided into free and anchored sections, which enhance the bearing capacity of the soil body through pre-stressing and bonding friction to ensure the stability and reliability of the support system. They are also used in engineering to actively reinforce slopes, tunnels and dams. Anchor as a deep stratum tensile member, it is connected with engineering structures at one end, and the other end is deep in the stratum, the whole anchor is divided into free section and anchorage section, the free section refers to the tension at the head of the anchor to the anchor solid area, and its function is to apply prestressing force to the anchor; the anchorage section refers to the cement slurry will be the area of the prestressing tendon bonded with the soil, and its function is to increase the bonding friction between the anchor solid and the soil layer, and increase the anchorage friction, and the anchor solid pressure-bearing effect, and increase the anchor friction and the soil layer. Its function is to increase the bond friction between the anchor solid and the soil layer, increase the pressure-bearing effect of the anchor solid, and transmit the tension of the free section to the depth of the soil body.


Galvanized Steel Rebar


Advantages:

Advantage lies in its high strength and reasonable structural design, the anchor has excellent pre-tensioning ability, which can automatically adjust the direction of force and increase the binding force on the surrounding rock. Mechanized quick installation makes it flexible to be used in various support methods such as end anchors, extension anchors and full anchors. It is suitable for high-strength support of large deformation roadway in highland pressure mines, and is also widely used for high-strength permanent roadway support in railroads, hydropower and other projects. Its strength grows rapidly and it has excellent bearing capacity and anchoring force, which ensures that it can reliably withstand all kinds of loads after installation and provide reliable support for various engineering projects.


Galvanized Steel Rebar


Anchor use.

  1. Determine the installation position according to the design requirements, and use drilling rigs to drill holes at that position.

  2. Use pressure wind equipment to clean the rock dust in the hole to ensure the hole is clean.

  3. Inject the anchoring agent into the bottom of the hole, and use the anchor to hold it against the top to start mixing, the mixing time should be in accordance with the anchoring agent regulations. After completing the mixing, wait for the specified time, remove the mixing equipment, install the anchor disk, ball washer and friction washer, and then use a wrench to tighten the nut. These steps ensure that the anchors are safely and securely fixed in the holes to provide solid support for the project.


Galvanized Steel Rebar


Company Profile

Shandong Ruiyu Mining Materials Processing Co., Ltd. mainly produces anchor rods, anchor nets, mining nuts, anchor discs, mining anchor ropes, anchors, W steel belt and other mining support materials; located at the foot of Taishan Mountain, the north bank of the Chaiwen River, is located in Xintai City, QuanGou Town Industrial Park, convenient transportation, Beijing-Shanghai, BoXu, LaiXin highway, magnetic Lai railroad around the plant, water, electricity, communication network.

The company's main products are mining underground roadway support materials "anchor", the company's products anchor, anchor net, mining nuts, anchor plate and so on instead of the traditional support forms and materials of the past coal mine roadway. The anchors have the advantages of "safe and reliable, high quality and low consumption, easy to use".

The company has a number of intermediate or above technical titles; strong technical force, quality testing equipment. Excellent product quality and first-class service has been with Xintai, Feicheng, Yanzhou, Zaozhuang, Henan, Hebei, Huainan, Huaibei, Linfen, Datong, Shaanxi. Shanxi . Shucheng, Guizhou, Northeast provinces, Gansu Lanzhou and other major mining groups and some small and medium-sized coal mines have formed an unbreakable relationship.

Lift the eyes of the infinite scenery, look down on the competition is in full swing, we are full of confidence, high morale, always pursuing the "good faith-based, reputation first, sincere cooperation, share the fruit" purpose. Products anchor, mining nut, anchor plate to "excellence, product zero defects" pursuit, wholeheartedly for the user's sincere service.

All the staff of Xintai Ruiyu Mining Material Processing Co., Ltd. warmly welcome guests from all directions, and sincerely cooperate closely with old and new friends to seek common development.

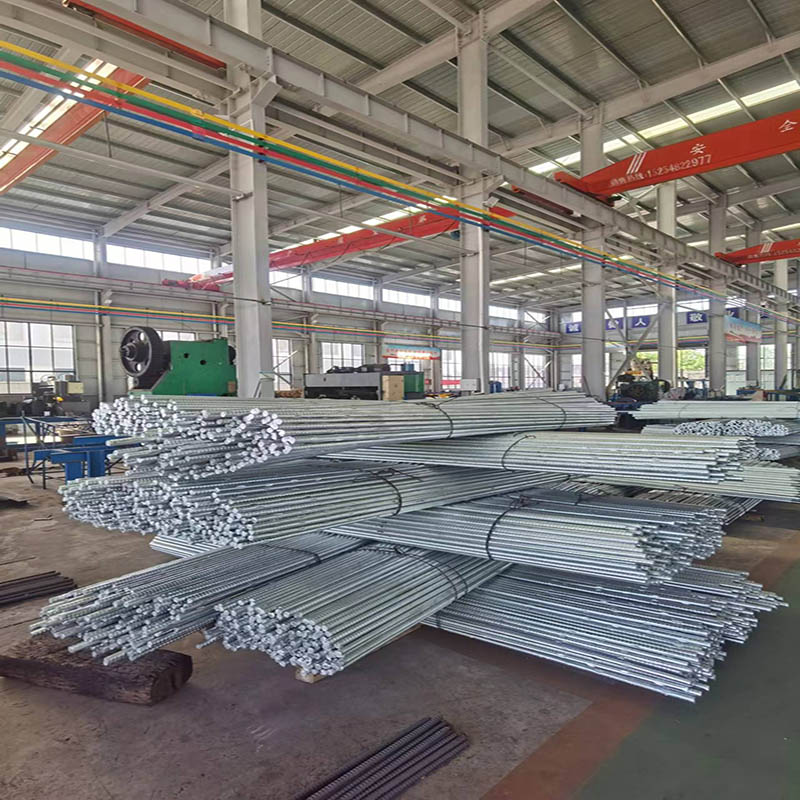

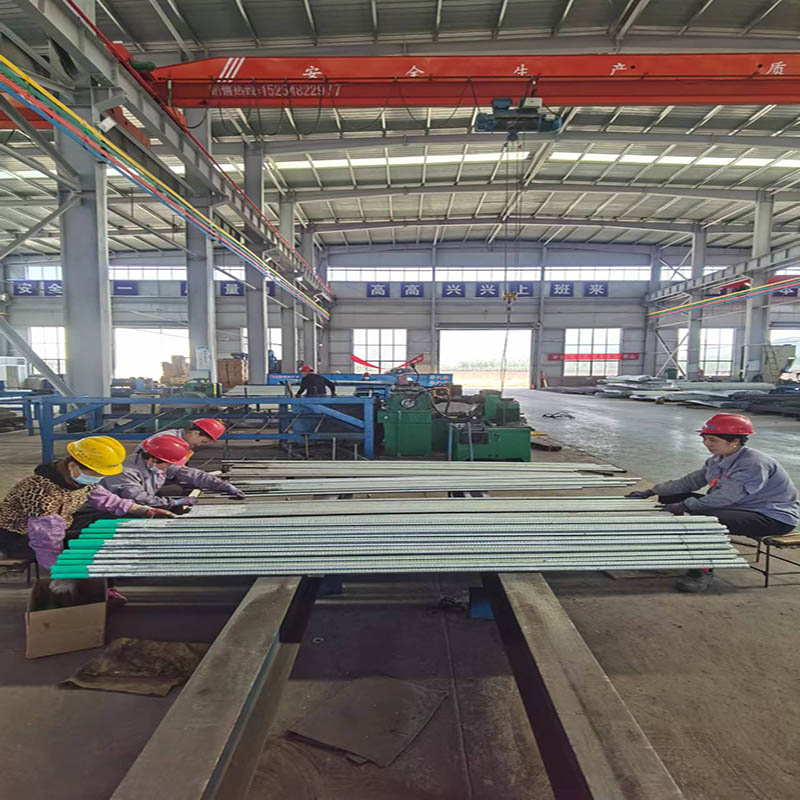

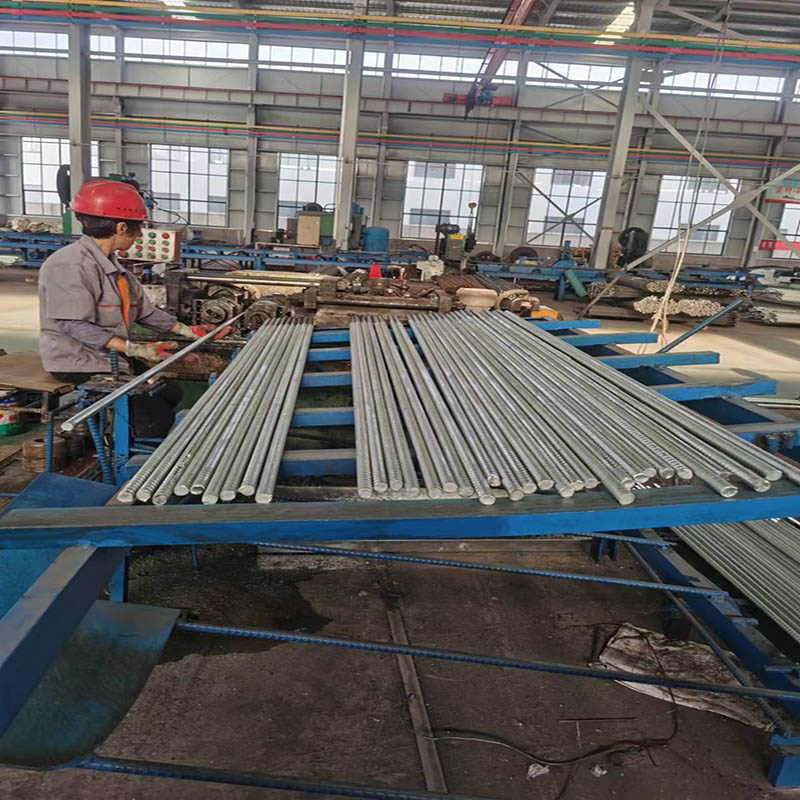

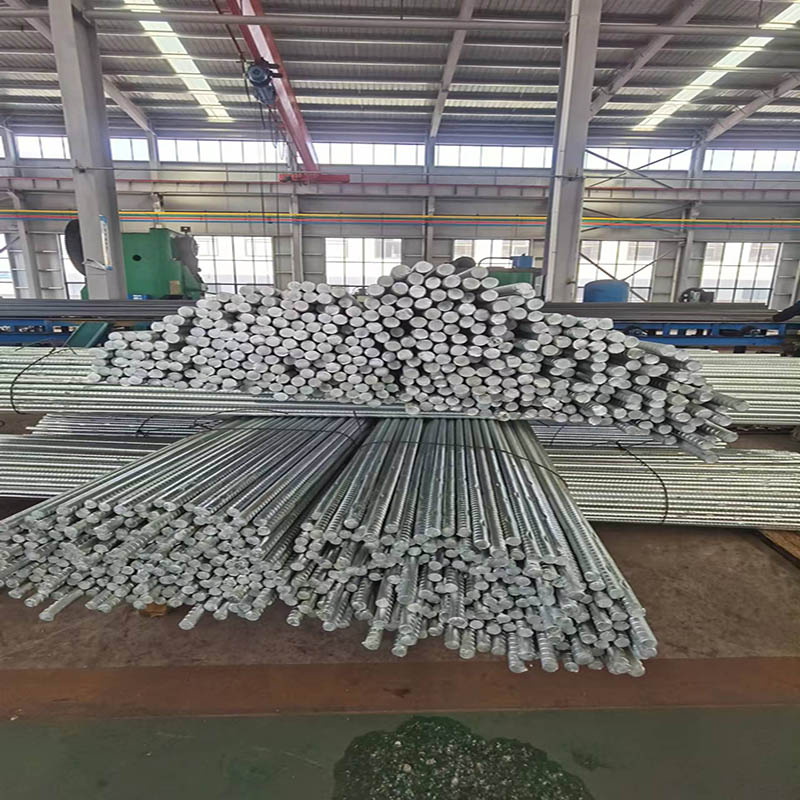

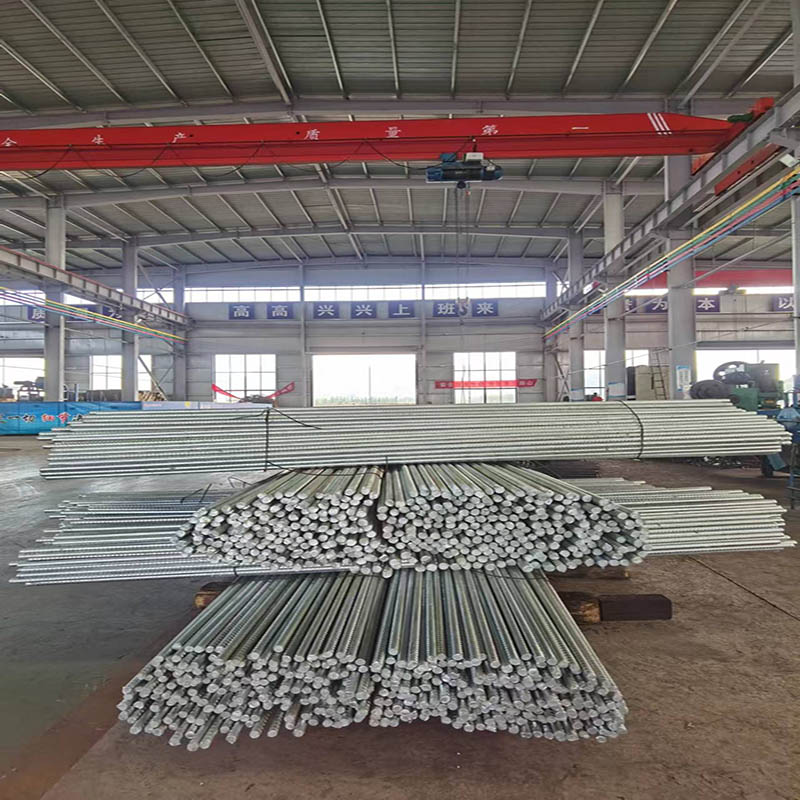

Galvanized Steel Rebar
